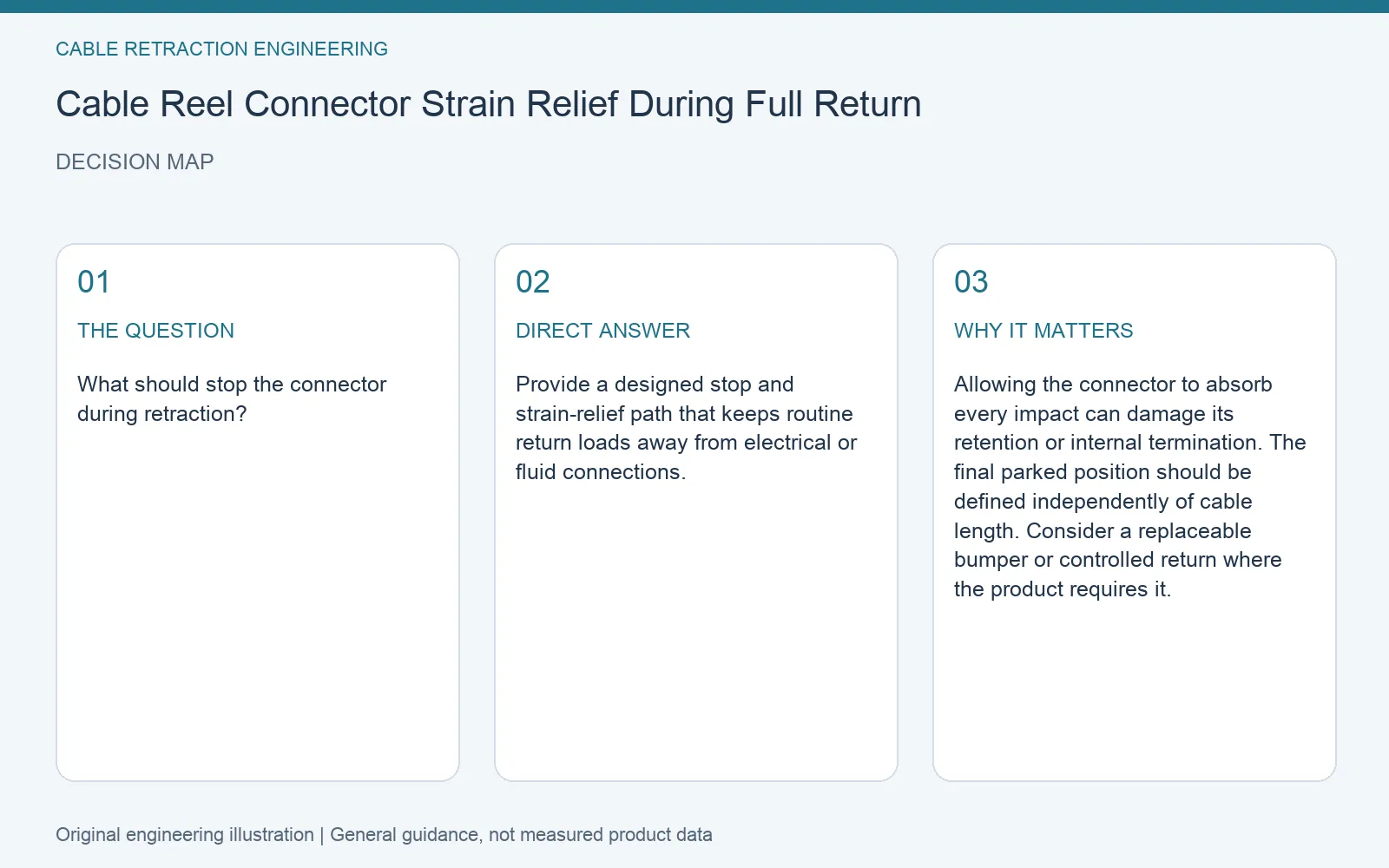

Quick answer: Provide a designed stop and strain-relief path that keeps routine return loads away from electrical or fluid connections.
What should stop the connector during retraction?
Allowing the connector to absorb every impact can damage its retention or internal termination. The final parked position should be defined independently of cable length. Consider a replaceable bumper or controlled return where the product requires it.

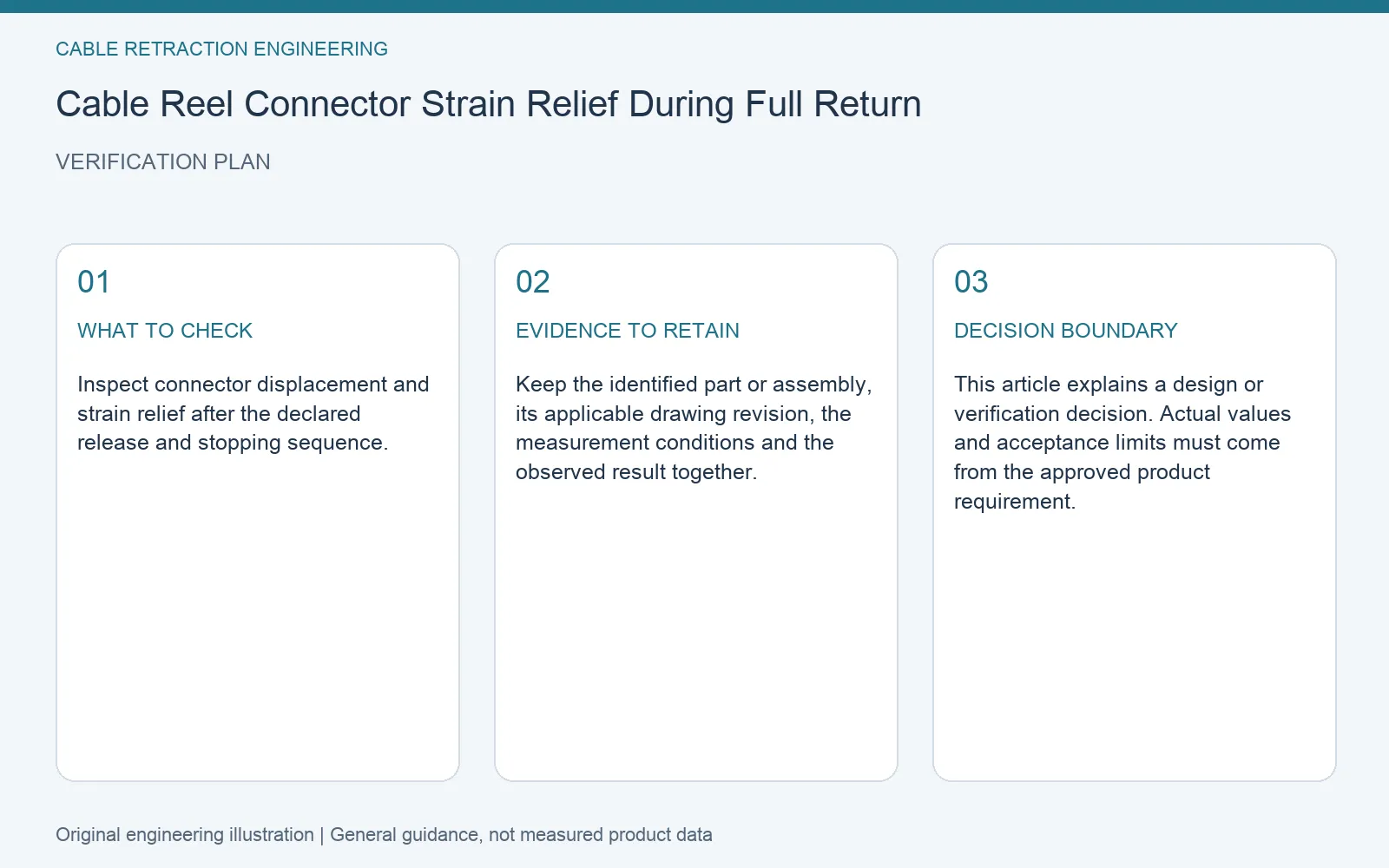

A practical verification method
Inspect connector displacement and strain relief after the declared release and stopping sequence.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Inspect connector displacement and strain relief after the declared release and stopping sequence. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
