Quick answer: Check the maximum cable envelope, lateral wandering and flange interaction throughout winding.

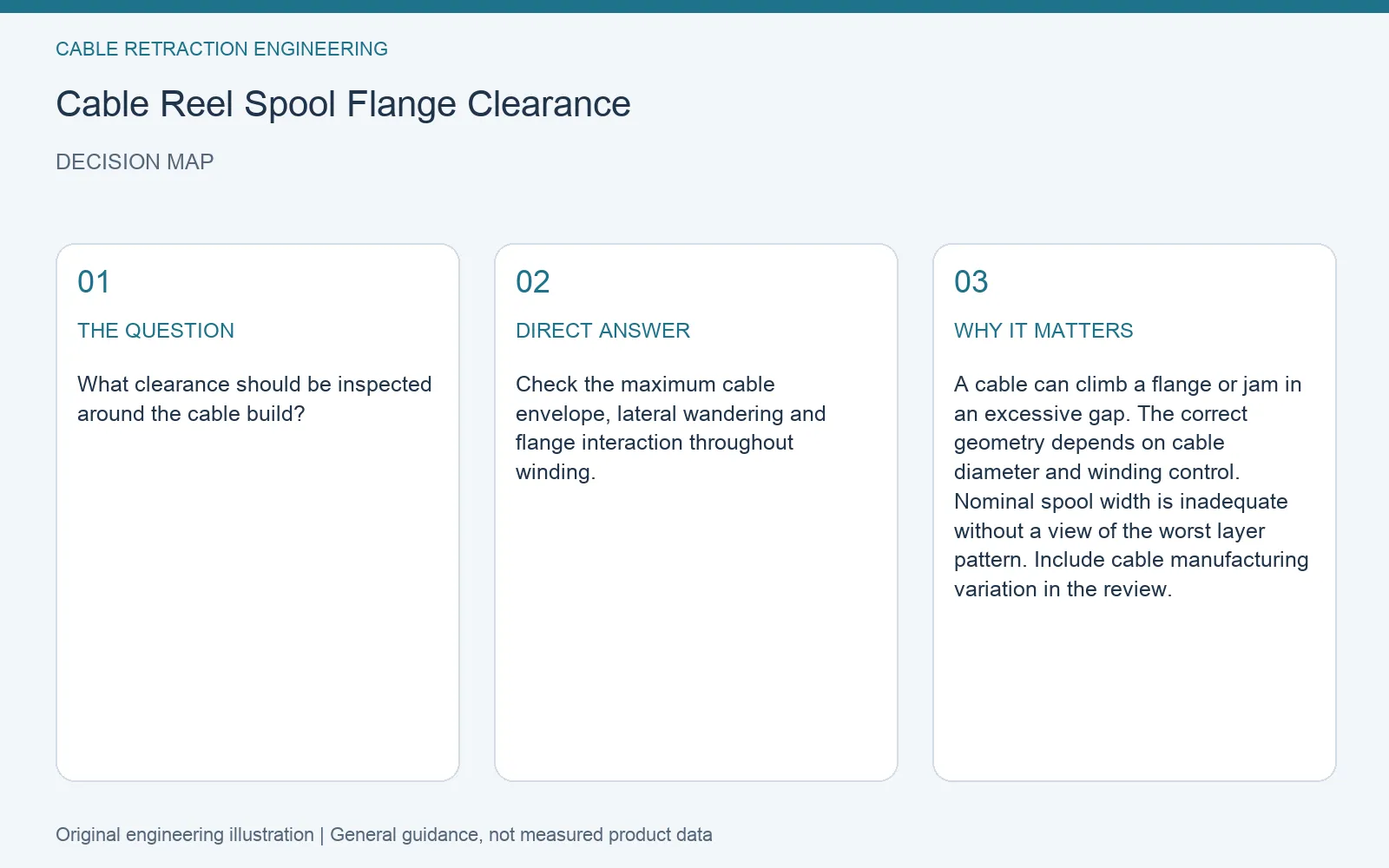

What clearance should be inspected around the cable build?
A cable can climb a flange or jam in an excessive gap. The correct geometry depends on cable diameter and winding control. Nominal spool width is inadequate without a view of the worst layer pattern. Include cable manufacturing variation in the review.
A practical verification method

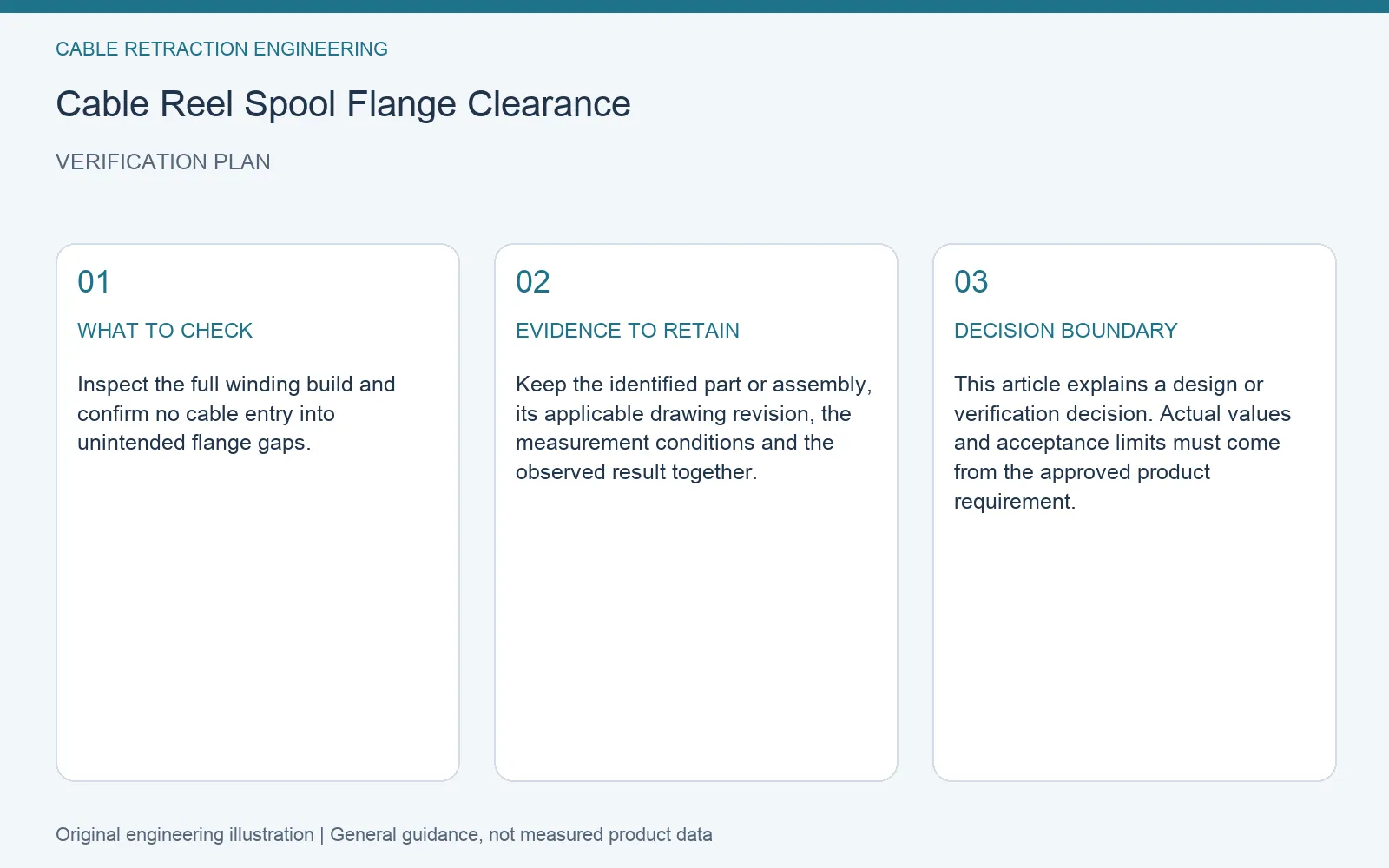

Inspect the full winding build and confirm no cable entry into unintended flange gaps.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Inspect the full winding build and confirm no cable entry into unintended flange gaps. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
