Seat Belt Retractor Springs: Return and Locking Functions

A seat belt retractor manages webbing movement as part of an occupant-restraint system. In many designs, a return spring helps wind webbing onto the spool; locking and any crash-triggered pretensioning are distinct functions that depend on the complete vehicle system.

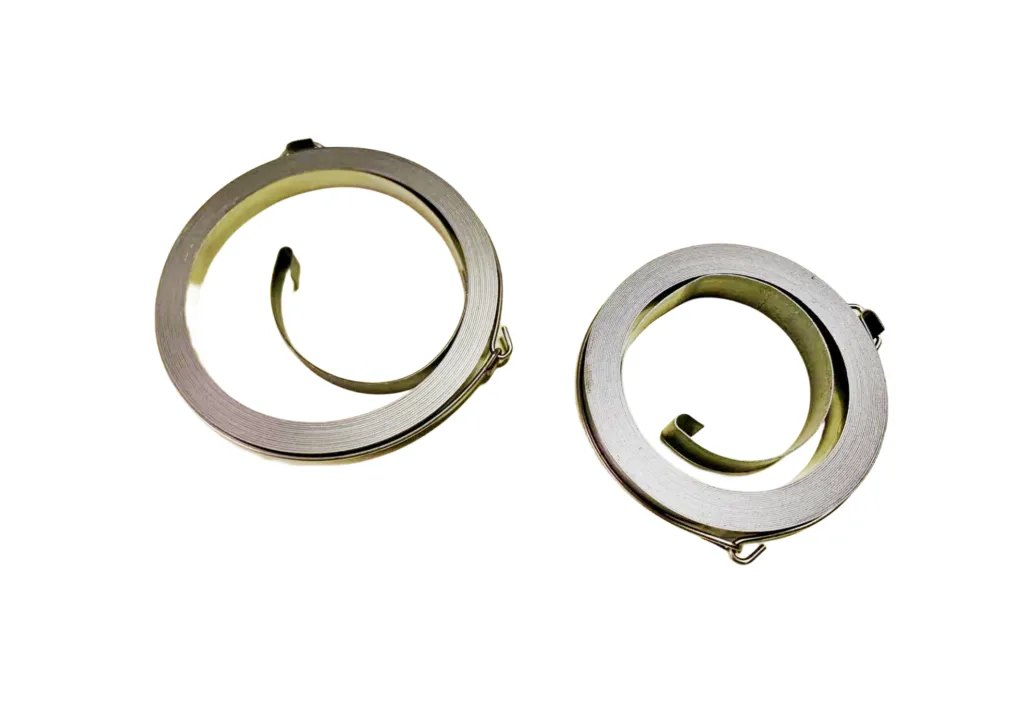

Seat belt retractor spring manufactured by Leading Spring

Return, locking and pretensioning have different roles

During ordinary use, webbing can extend and retract as permitted by the retractor design. An emergency-locking mechanism may restrict further spool rotation under specified conditions. Some vehicles also use a pretensioner to remove slack in certain collisions; its behavior depends on the vehicle and restraint design.

For an example of these separate functions, see the manufacturer owner information hosted by the U.S. National Highway Traffic Safety Administration. This source describes a particular vehicle system and should not be generalized to every model.

What a spring specification can and cannot establish

For a spring review, define the required retraction torque or force, working rotation, spool and attachment geometry, winding direction and environmental conditions. Compare outward effort and return with the intended webbing and complete reel; friction and spool geometry influence the assembled behavior.

A spring sample or return-force result does not establish crash protection, locking performance, vehicle compatibility or regulatory approval. The responsible retractor and vehicle manufacturers must validate the complete system against requirements applicable to the product and market.

Service and project enquiries

Seat belt assemblies are safety-critical. Follow the vehicle manufacturer’s service instructions and use qualified service personnel; this article is not a repair or disassembly procedure. For a non-confidential spring design discussion, use the contact page and arrange a private channel for detailed drawings.
