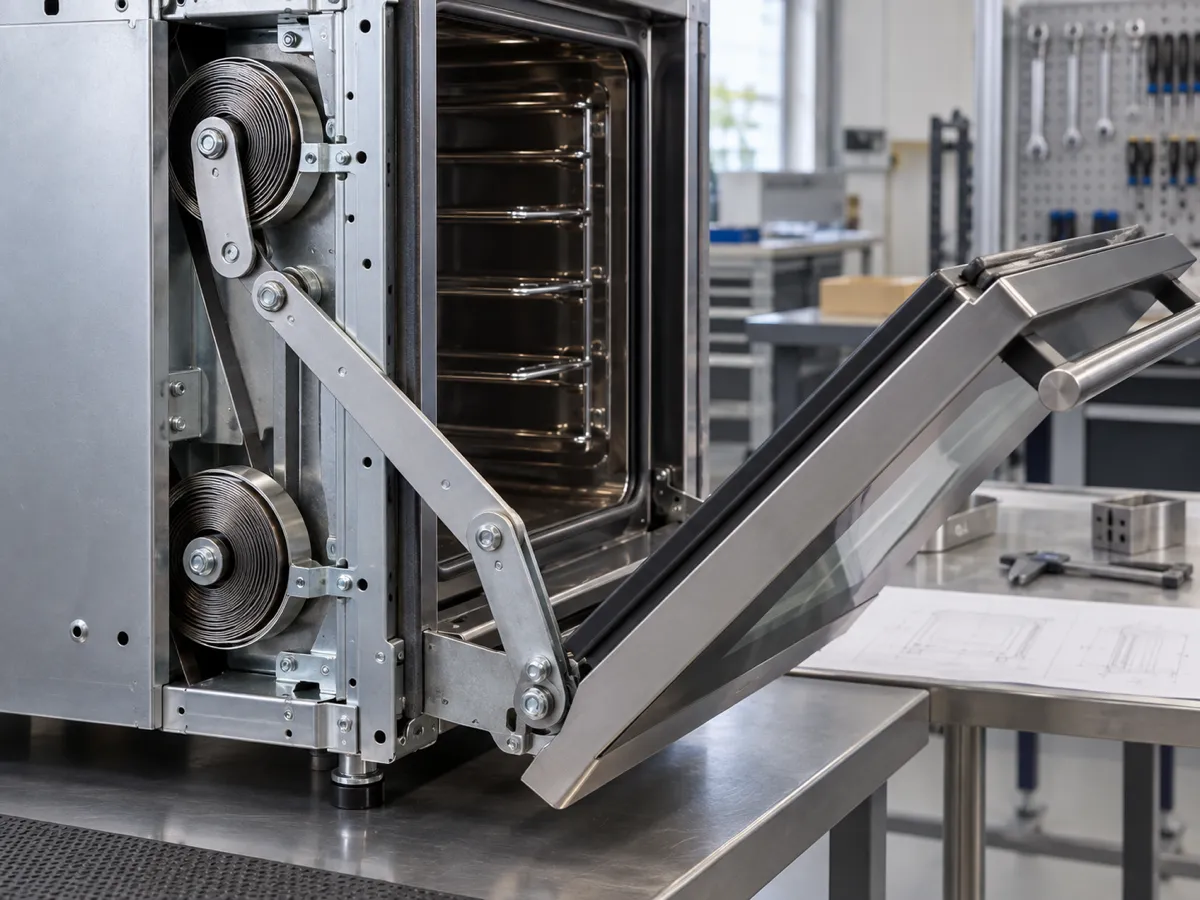

A constant force spring can provide compact, repeatable motion control in a commercial oven door counterbalance when its force, travel, attachments and protection are designed around the complete assembly.
For engineering teams comparing compact return, counterbalance and positioning options, the spring should be evaluated as one part of the full mechanism. Shenzhen Leading Spring develops custom constant force springs around the required load, motion, package, environment and production target.
Quick answer
A constant force spring can support the door through a link or drum arrangement, reducing operator effort across the opening range. Heat shielding and the real temperature at the spring location must be established before material selection. A production-ready design therefore balances user feel, reliable return or holding behavior, fatigue margin and safe mechanical stops.
Typical applications
- OEM commercial oven door counterbalance assemblies
- Compact insulated oven door and linkage return modules
- Custom mechanisms with limited installation space
- Prototype-to-production motion-control programs
How the mechanism works
A constant force spring can support the door through a link or drum arrangement, reducing operator effort across the opening range. Heat shielding and the real temperature at the spring location must be established before material selection. The real output is also affected by bearings, guides, seals, cables, latches and manufacturing tolerances. Testing only the loose spring can miss the friction and alignment conditions that determine field performance.
Key design parameters
| Parameter | Why it matters |
|---|---|
| Moving load | Defines the force or torque needed at each position. |
| Travel and geometry | Determine spring working range, spool or pivot dimensions and preload. |
| Available envelope | Limits strip width, coil diameter, housing and attachment options. |
| Environment | Guides material, surface protection, lubricant and sealing choices. |
| Cycle-life target | Sets fatigue margin and validation duration. |
Failure modes to prevent
Common risks include heavy closing, door bounce, heat-related force loss, grease contamination, link wear and attachment fatigue. These are often caused by excessive working travel, sharp attachment geometry, poor alignment, contamination or a production assembly whose friction differs from the prototype.
Prototype and life testing
Measure pull force or operating torque at the start, middle and end of travel. Cycle the complete production-equivalent assembly at normal and worst-case extension, then inspect the spring edges, end attachments, guides, spool or pivot and mechanical stops. Add temperature, humidity, salt, dust, vibration or cleaning-agent exposure when the intended environment requires it.
What to include in an RFQ
Provide door mass, hinge geometry, angular range, spring temperature, target handle force, cleaning exposure, attachment details, and life requirement. Drawings or a 3D model of both spring attachments and the complete motion path help the engineering team avoid assumptions.
Custom development support
Shenzhen Leading Spring supports application review, spring design, prototypes and production. Final material, dimensions, force, life and attachment details should be confirmed from customer drawings and mechanism tests. Contact the spring engineering team with your RFQ.
FAQ
How is the spring size selected for a commercial oven door counterbalance?
Selection starts with the real load, travel, geometry, installation space, environment and target life. The mechanism should then be prototyped because guides, seals, locks and tolerances change the measured output.
Can one constant force spring design cover several product variants?
Sometimes. A shared design is practical only when every variant remains inside the validated force, travel, temperature and cycle-life window.
Why are end stops important?
A dedicated stop should absorb foreseeable over-travel before the spring strip or attachment is overloaded. This improves durability and makes performance less dependent on user handling.
