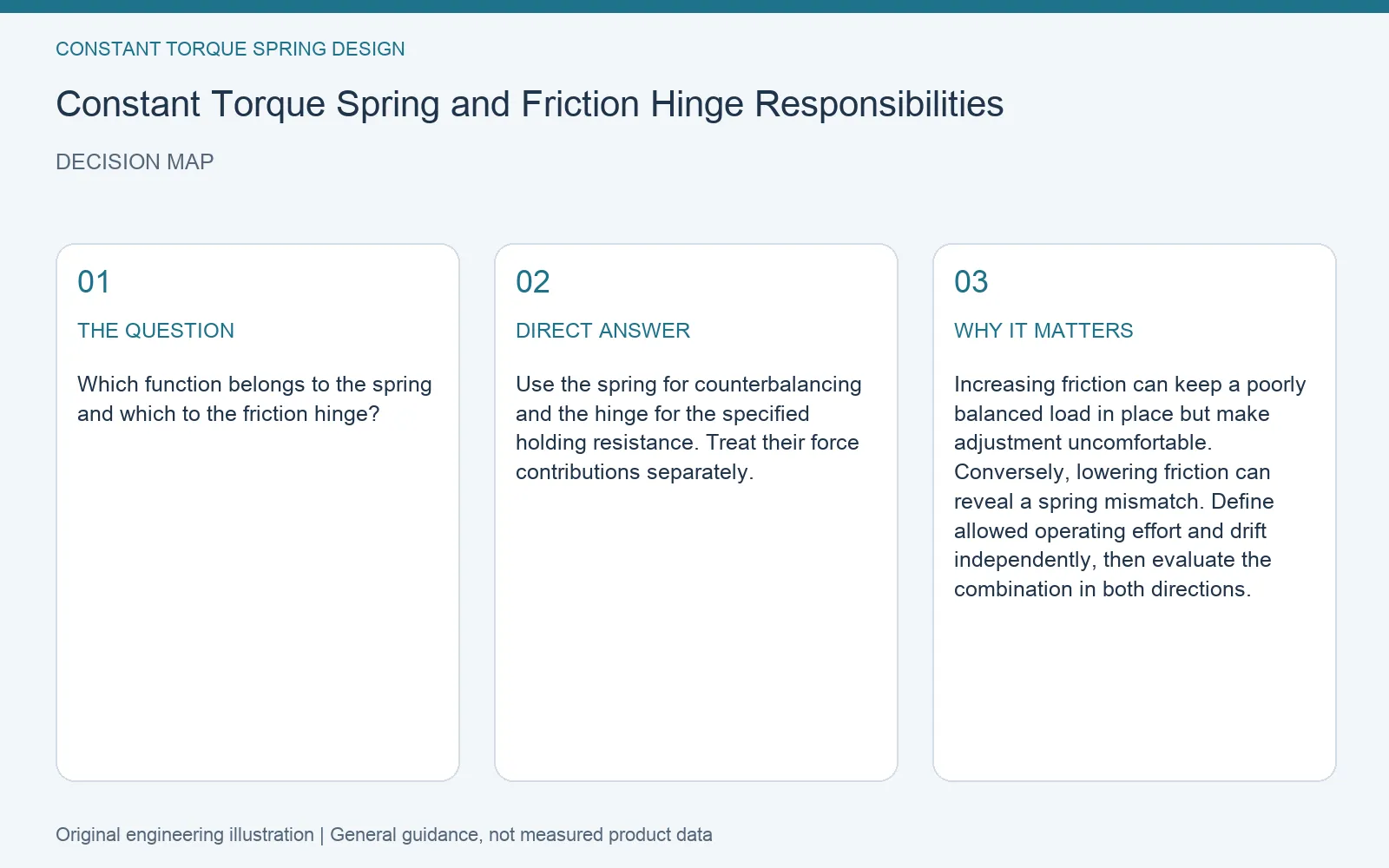

Quick answer: Use the spring for counterbalancing and the hinge for the specified holding resistance. Treat their force contributions separately.
Which function belongs to the spring and which to the friction hinge?
Increasing friction can keep a poorly balanced load in place but make adjustment uncomfortable. Conversely, lowering friction can reveal a spring mismatch. Define allowed operating effort and drift independently, then evaluate the combination in both directions.

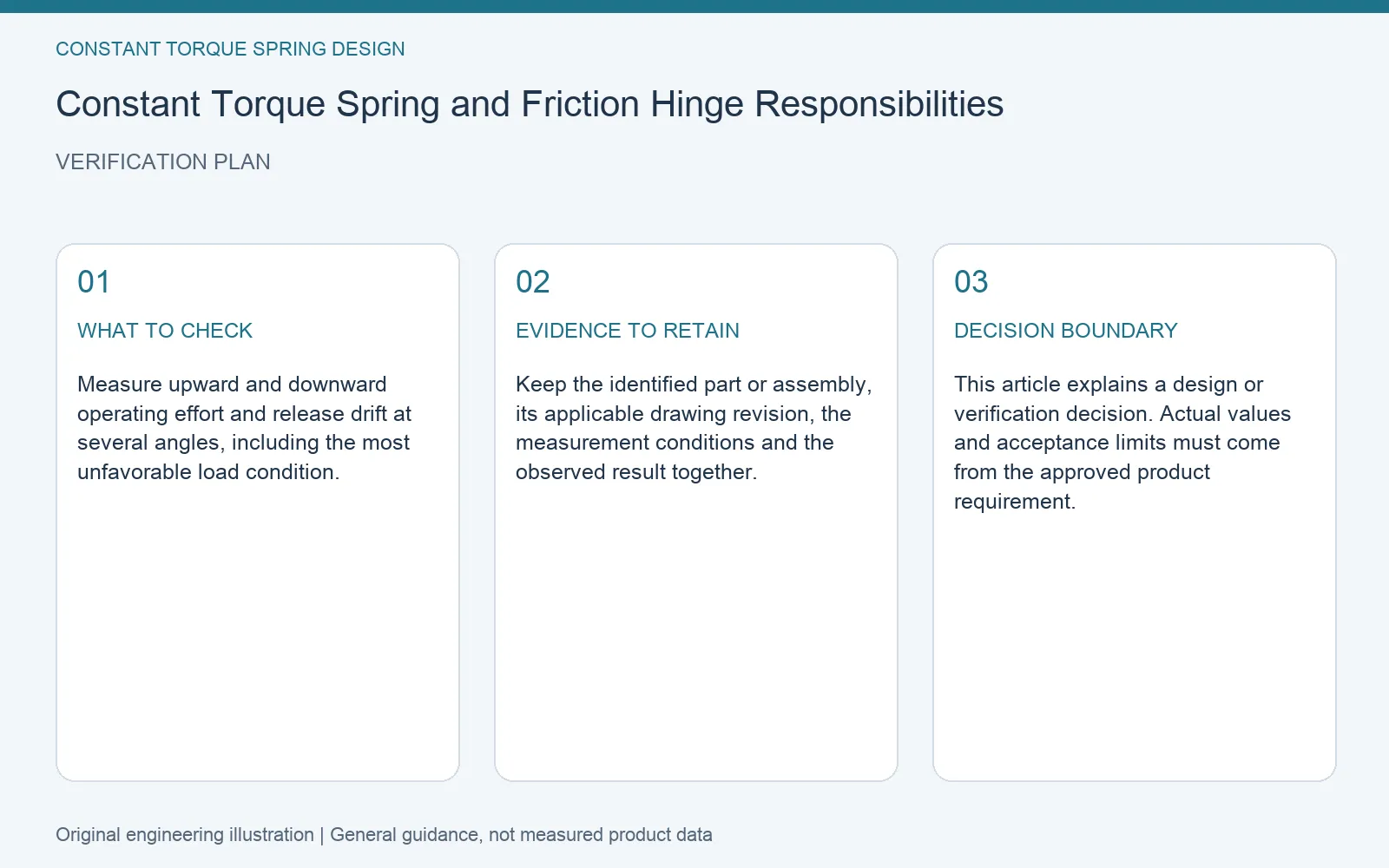

A practical verification method
Measure upward and downward operating effort and release drift at several angles, including the most unfavorable load condition.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Measure upward and downward operating effort and release drift at several angles, including the most unfavorable load condition. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
