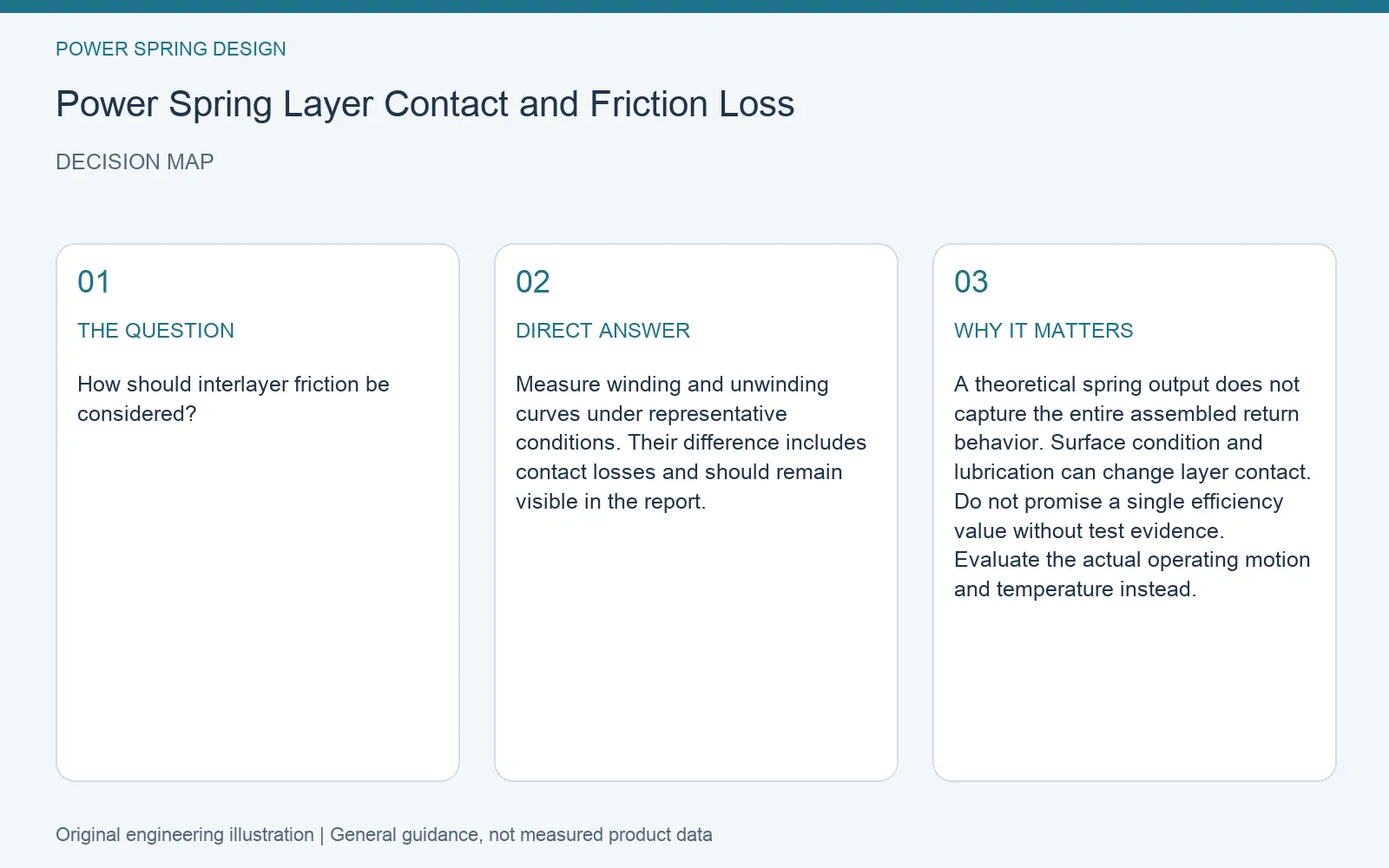

Quick answer: Measure winding and unwinding curves under representative conditions. Their difference includes contact losses and should remain visible in the report.
How should interlayer friction be considered?
A theoretical spring output does not capture the entire assembled return behavior. Surface condition and lubrication can change layer contact. Do not promise a single efficiency value without test evidence. Evaluate the actual operating motion and temperature instead.

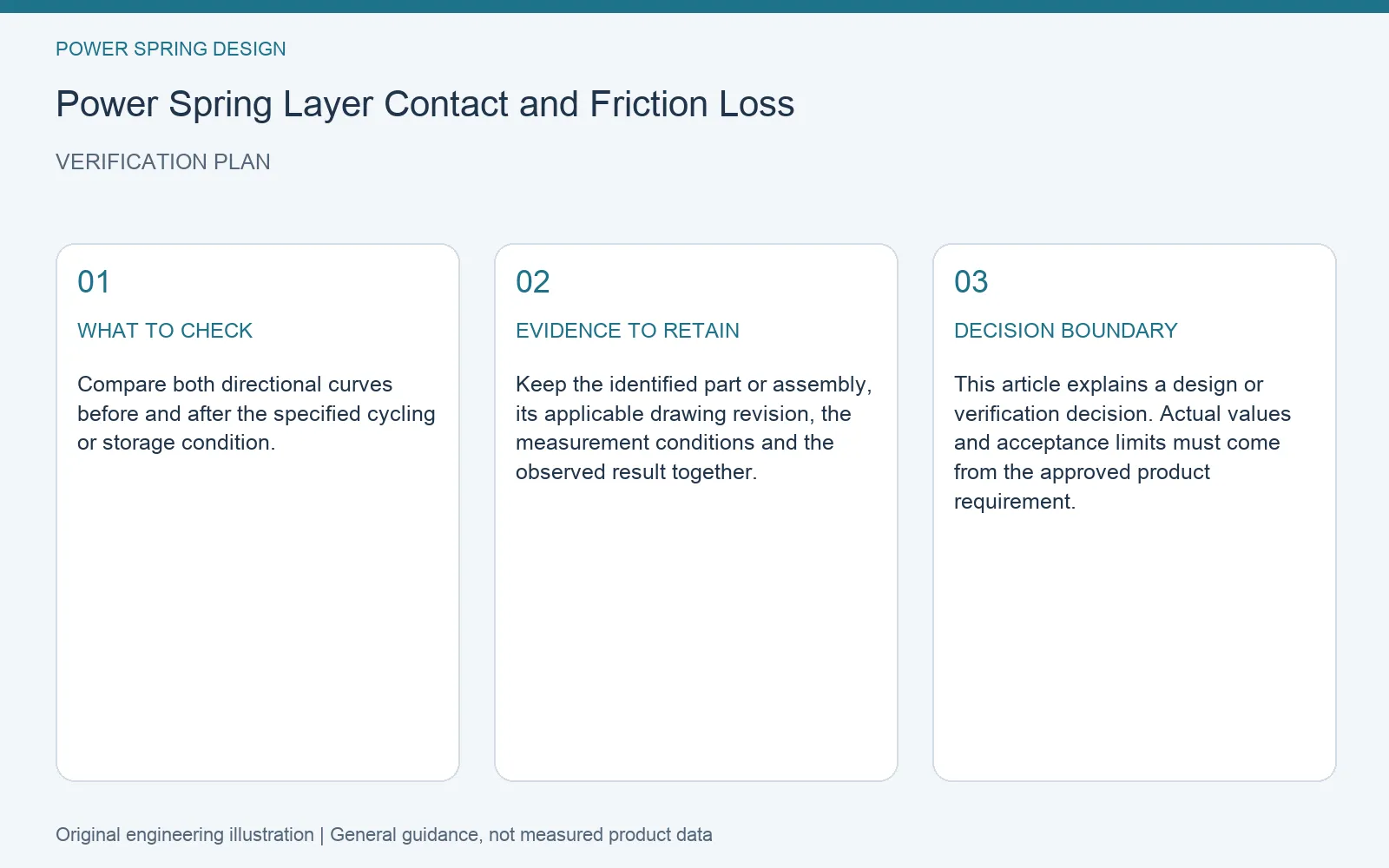

A practical verification method
Compare both directional curves before and after the specified cycling or storage condition.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Compare both directional curves before and after the specified cycling or storage condition. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
