Quick answer: Use a range and measurement method suitable for expected forces, including peaks and the resolution needed at acceptance points.

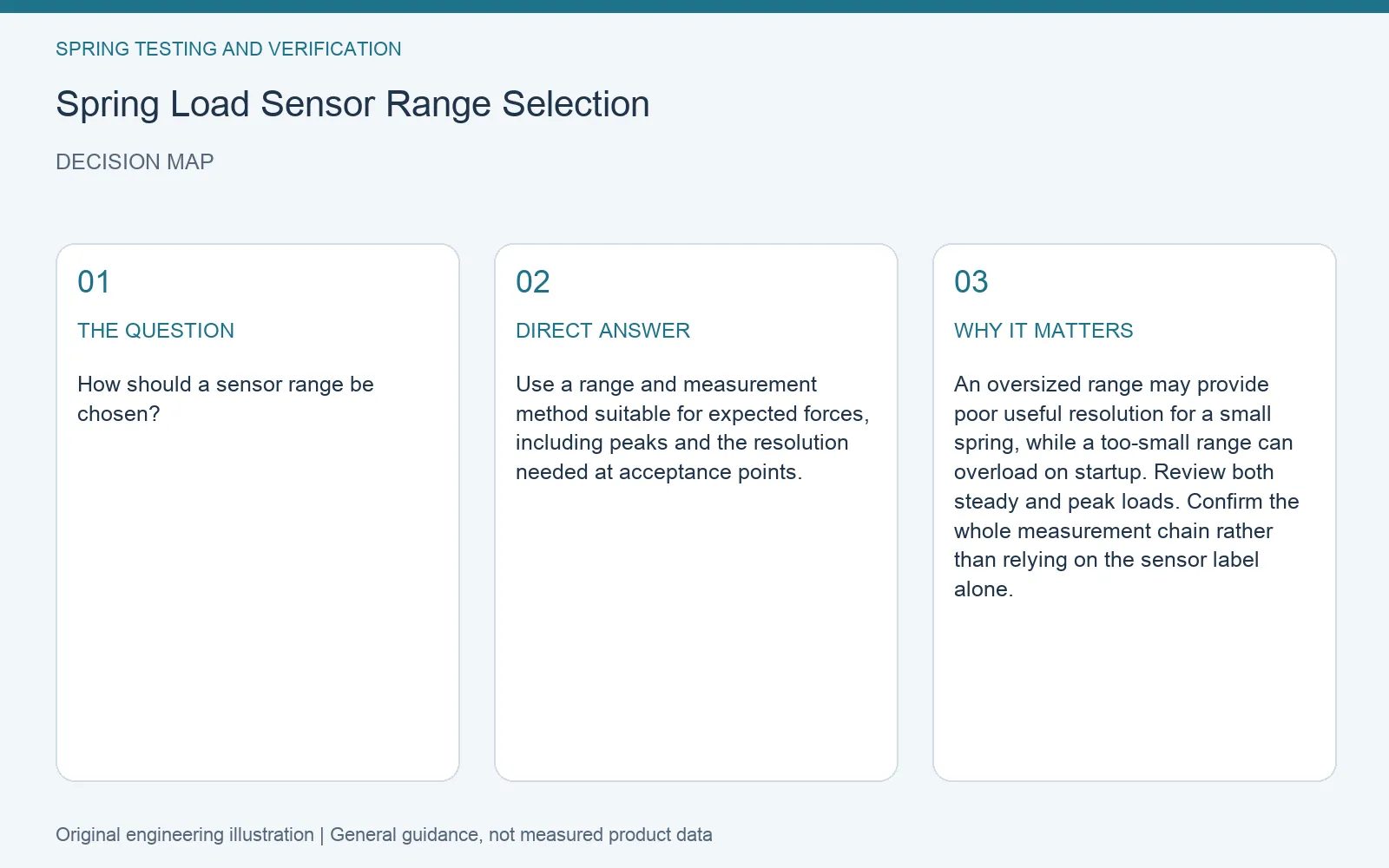

How should a sensor range be chosen?
An oversized range may provide poor useful resolution for a small spring, while a too-small range can overload on startup. Review both steady and peak loads. Confirm the whole measurement chain rather than relying on the sensor label alone.

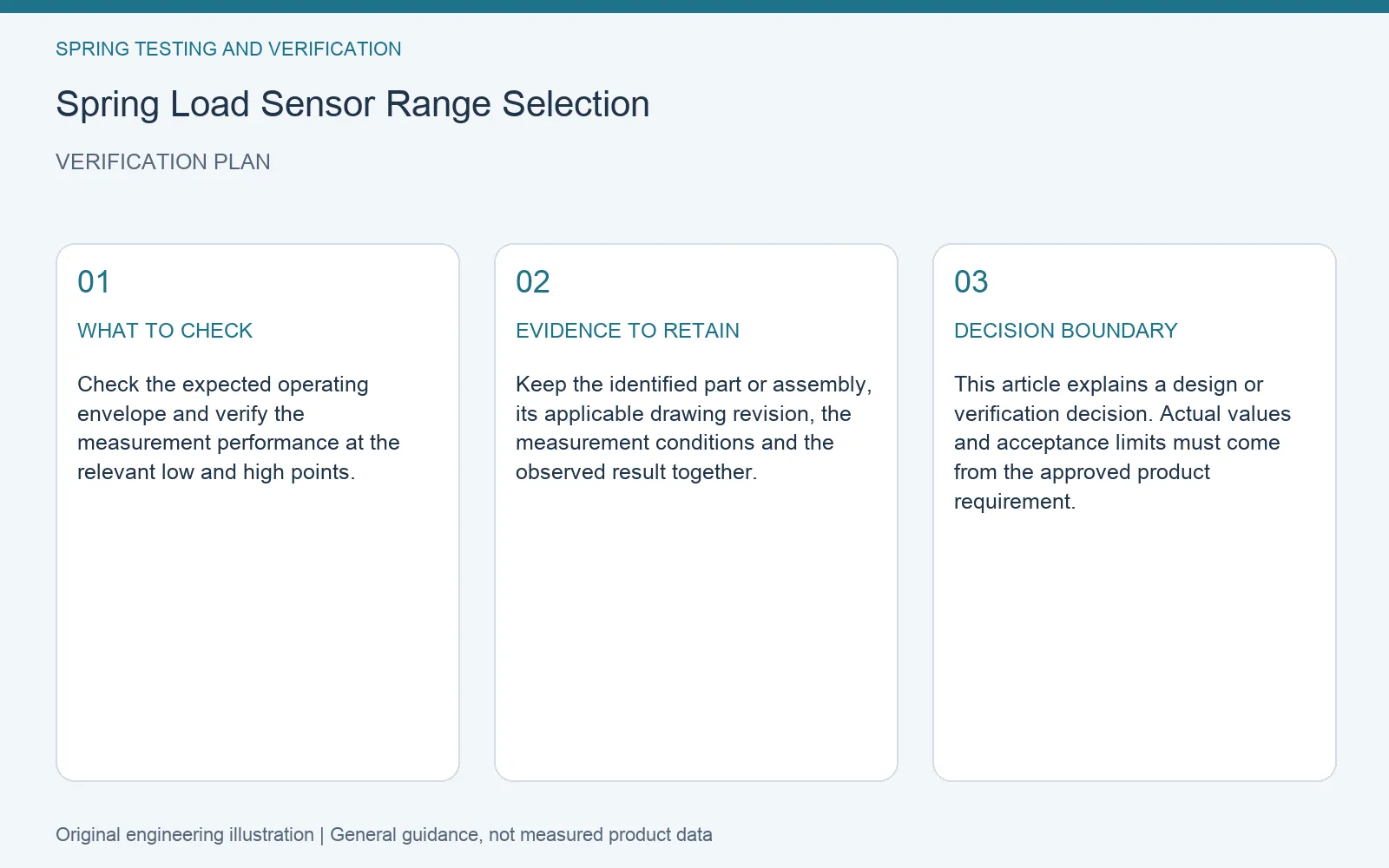

A practical verification method
Check the expected operating envelope and verify the measurement performance at the relevant low and high points.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Check the expected operating envelope and verify the measurement performance at the relevant low and high points. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
Editorial note: AI-assisted engineering guidance, prepared from the topic-specific reasoning shown here and the company’s public product context. Illustrations explain decisions; they are not customer-case photographs or test results. Product-specific suitability requires review against your approved requirements.
