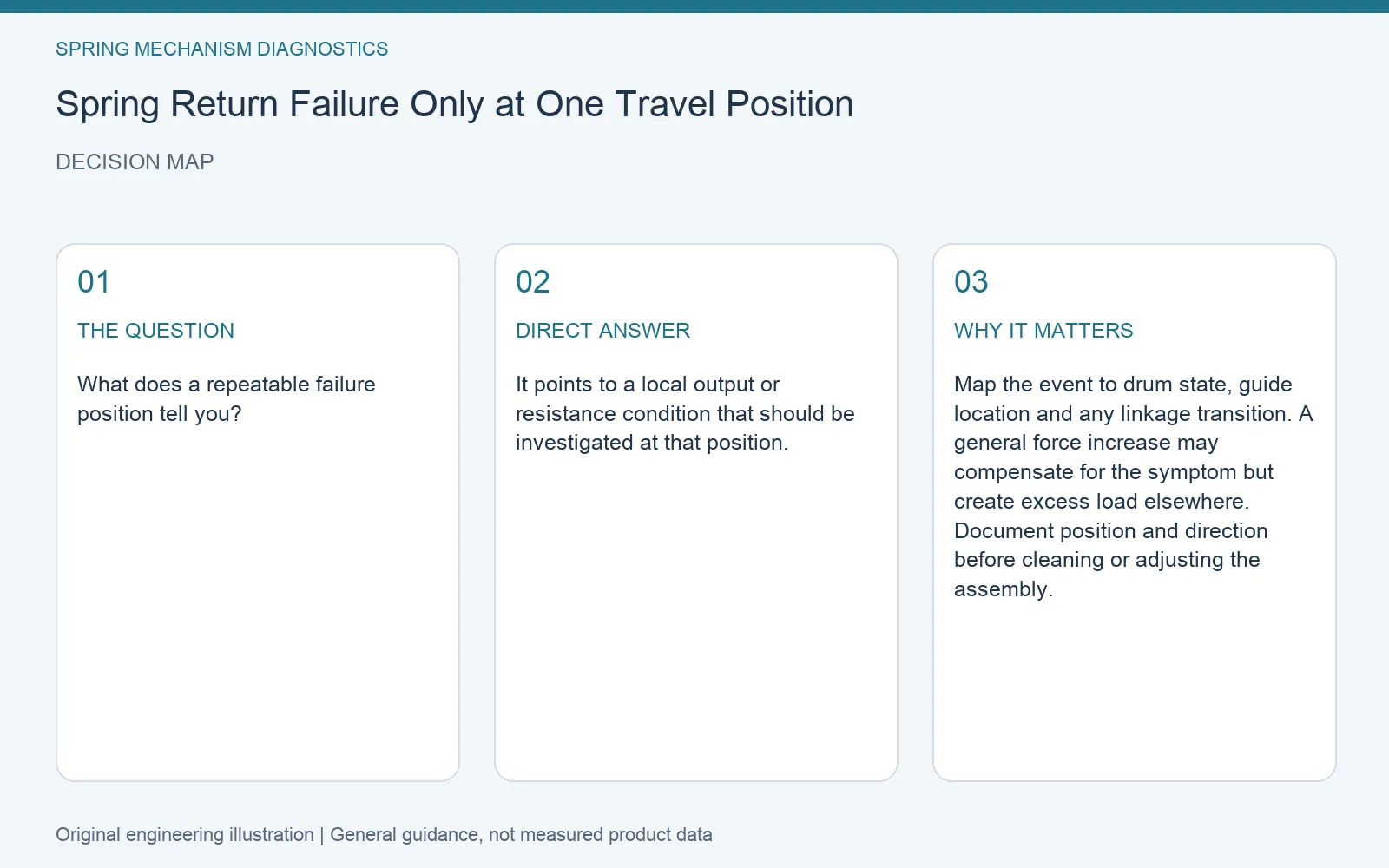

Quick answer: It points to a local output or resistance condition that should be investigated at that position.
What does a repeatable failure position tell you?
Map the event to drum state, guide location and any linkage transition. A general force increase may compensate for the symptom but create excess load elsewhere. Document position and direction before cleaning or adjusting the assembly.

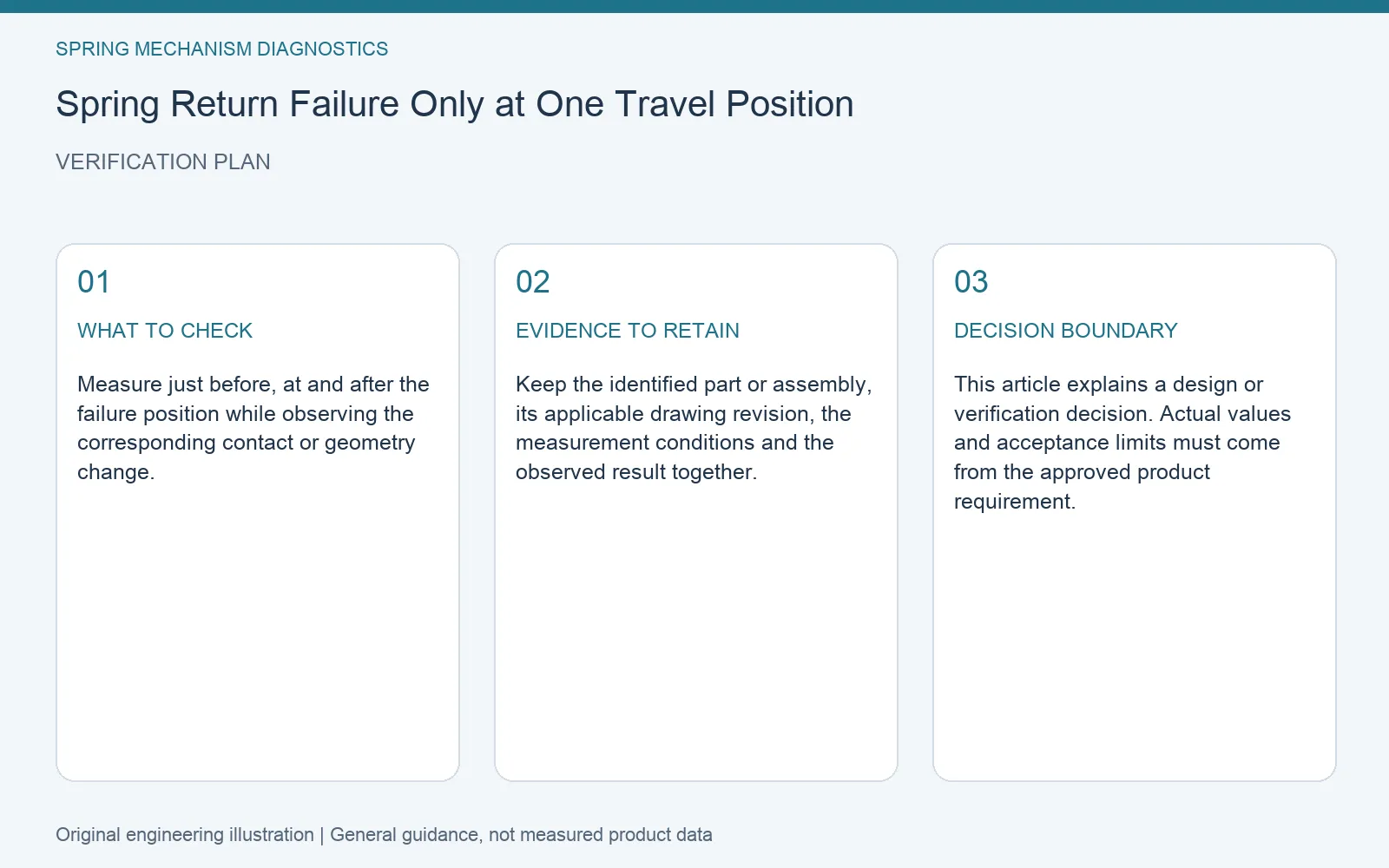

A practical verification method
Measure just before, at and after the failure position while observing the corresponding contact or geometry change.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Measure just before, at and after the failure position while observing the corresponding contact or geometry change. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
