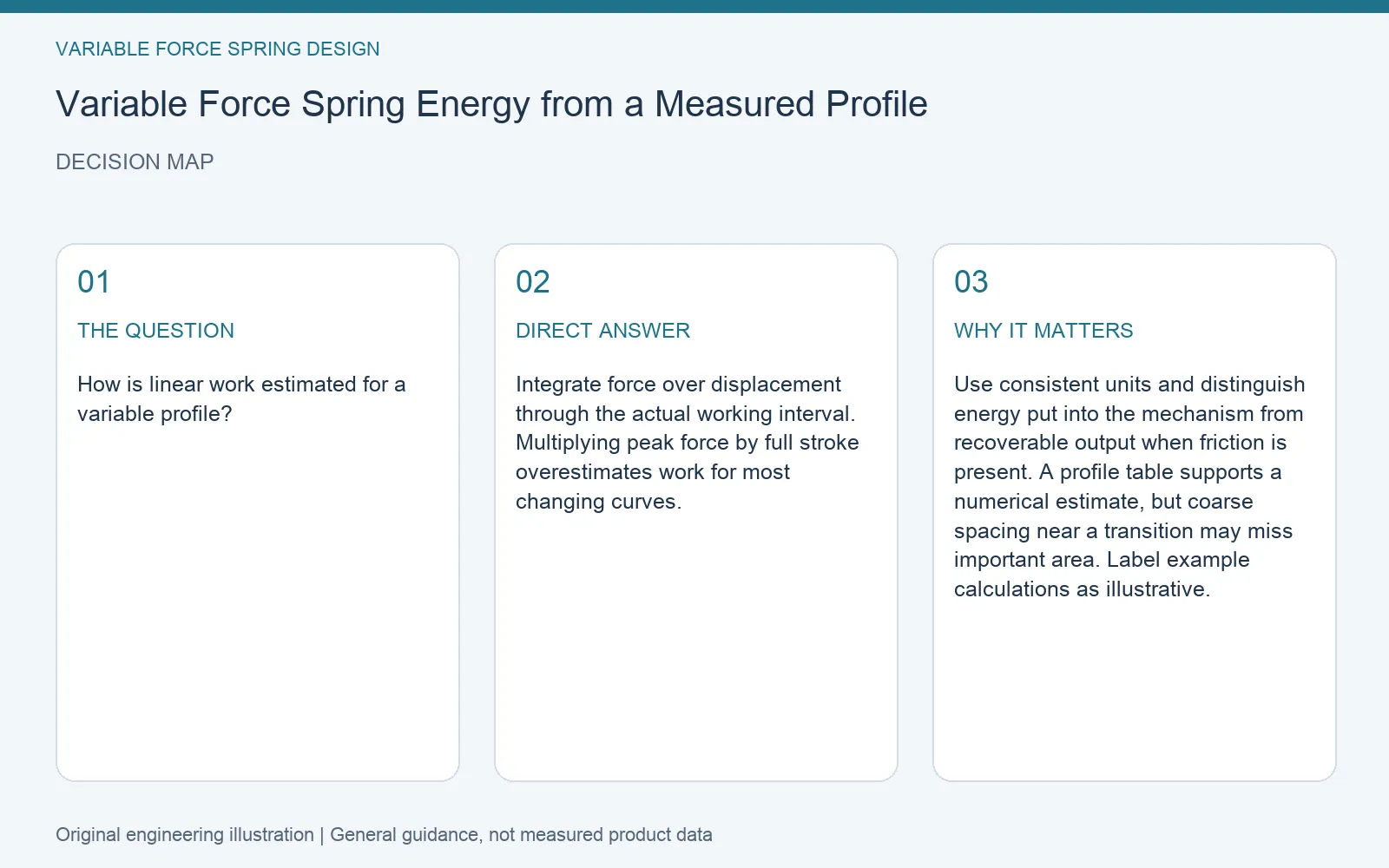

Quick answer: Integrate force over displacement through the actual working interval. Multiplying peak force by full stroke overestimates work for most changing curves.
How is linear work estimated for a variable profile?
Use consistent units and distinguish energy put into the mechanism from recoverable output when friction is present. A profile table supports a numerical estimate, but coarse spacing near a transition may miss important area. Label example calculations as illustrative.

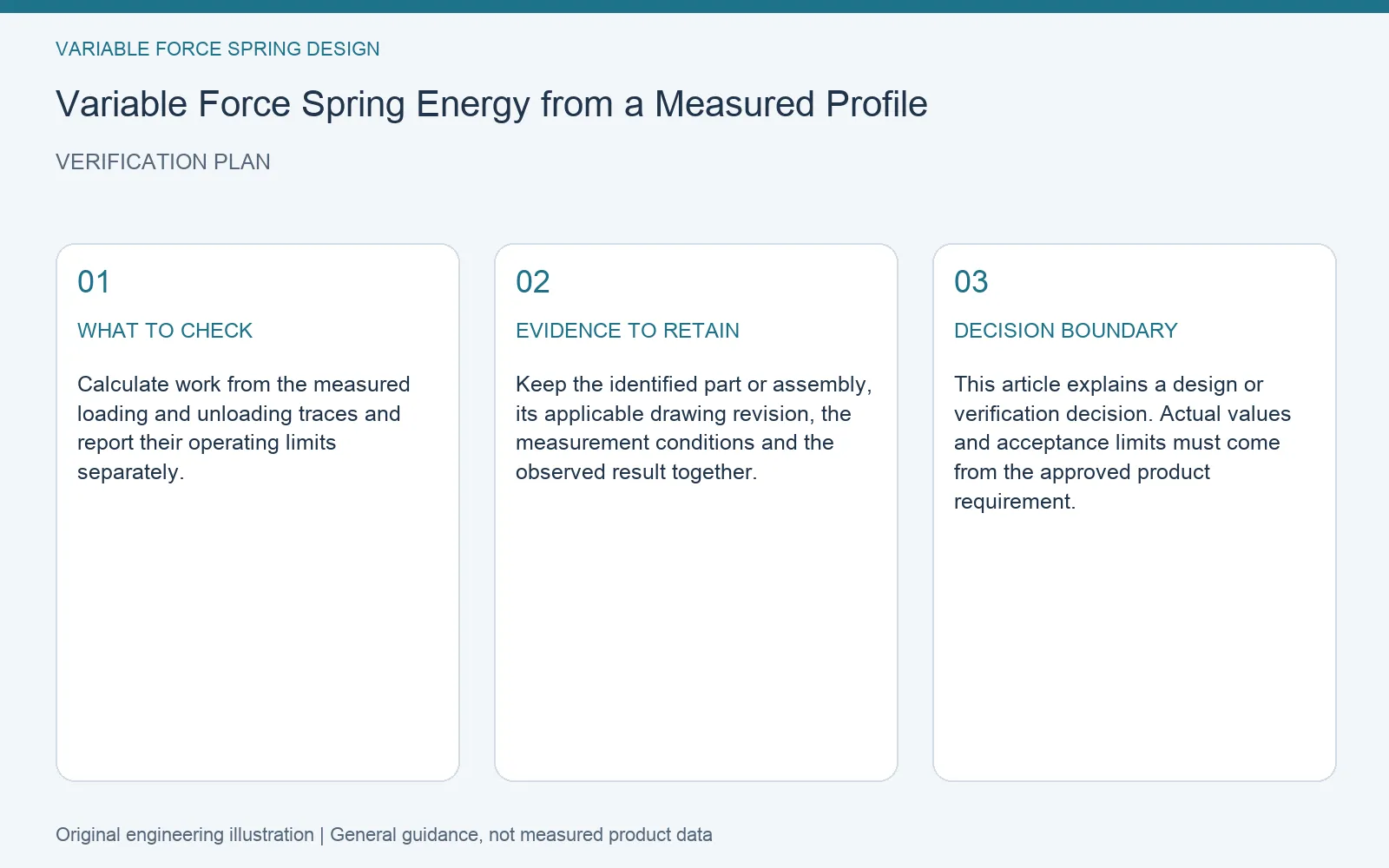

A practical verification method
Calculate work from the measured loading and unloading traces and report their operating limits separately.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Calculate work from the measured loading and unloading traces and report their operating limits separately. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
Editorial note: AI-assisted engineering guidance, prepared from the topic-specific reasoning shown here and the company’s public product context. Illustrations explain decisions; they are not customer-case photographs or test results. Product-specific suitability requires review against your approved requirements.
