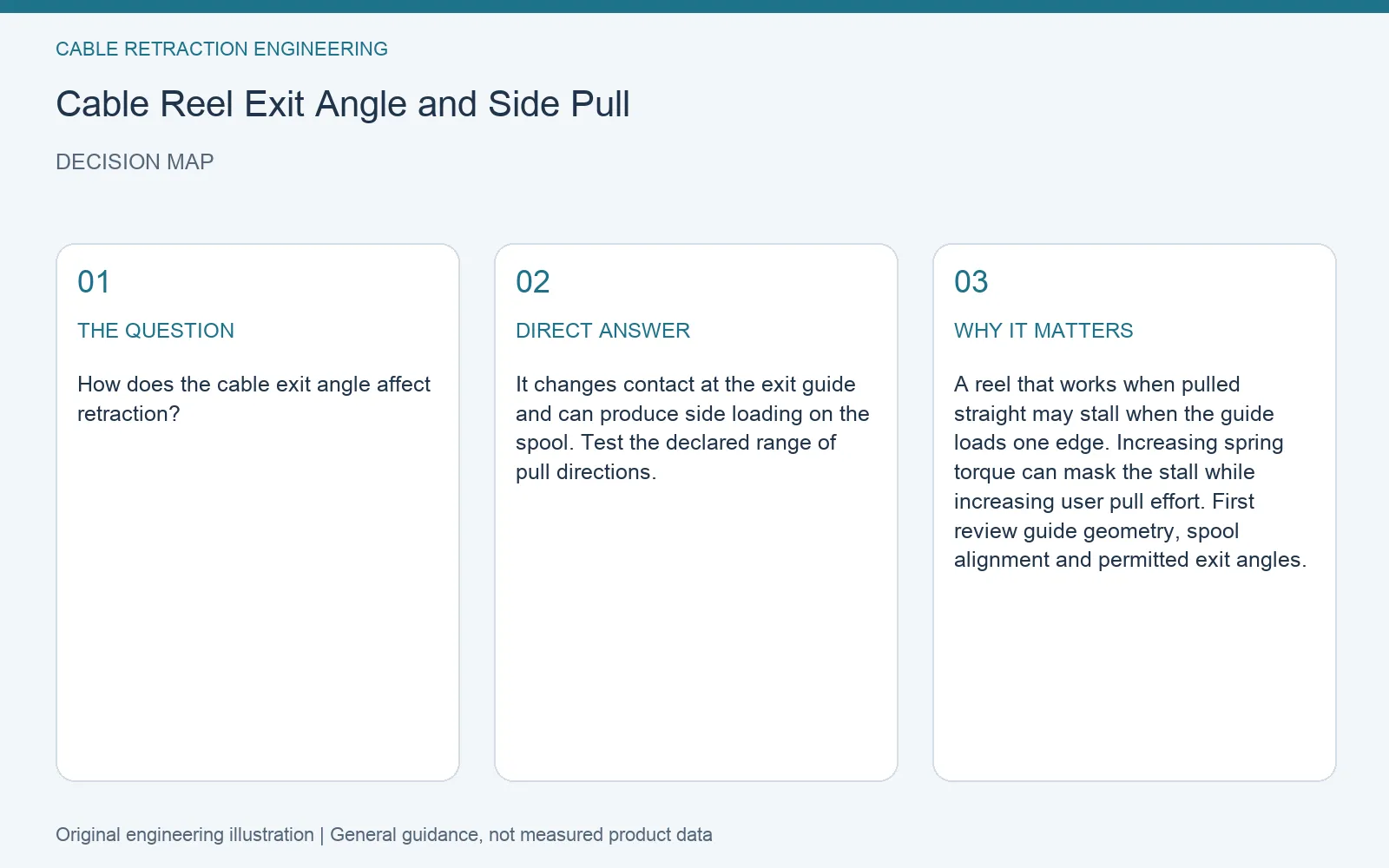

Quick answer: It changes contact at the exit guide and can produce side loading on the spool. Test the declared range of pull directions.
How does the cable exit angle affect retraction?
A reel that works when pulled straight may stall when the guide loads one edge. Increasing spring torque can mask the stall while increasing user pull effort. First review guide geometry, spool alignment and permitted exit angles.
A practical verification method

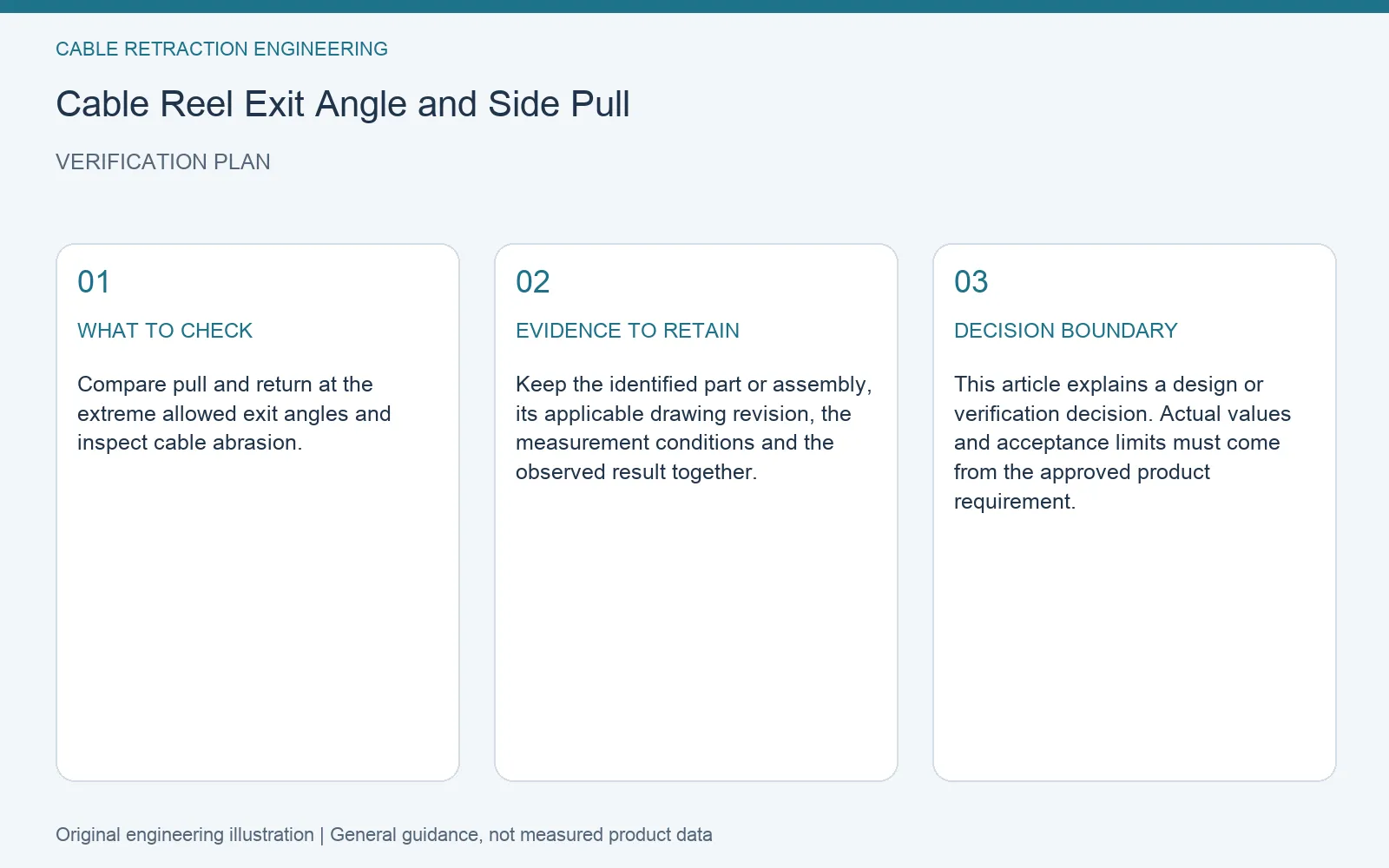

Compare pull and return at the extreme allowed exit angles and inspect cable abrasion.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Compare pull and return at the extreme allowed exit angles and inspect cable abrasion. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
