Quick answer: Include its travel resistance, reversal behavior and cable guidance. Even orderly winding can add load to the return mechanism.

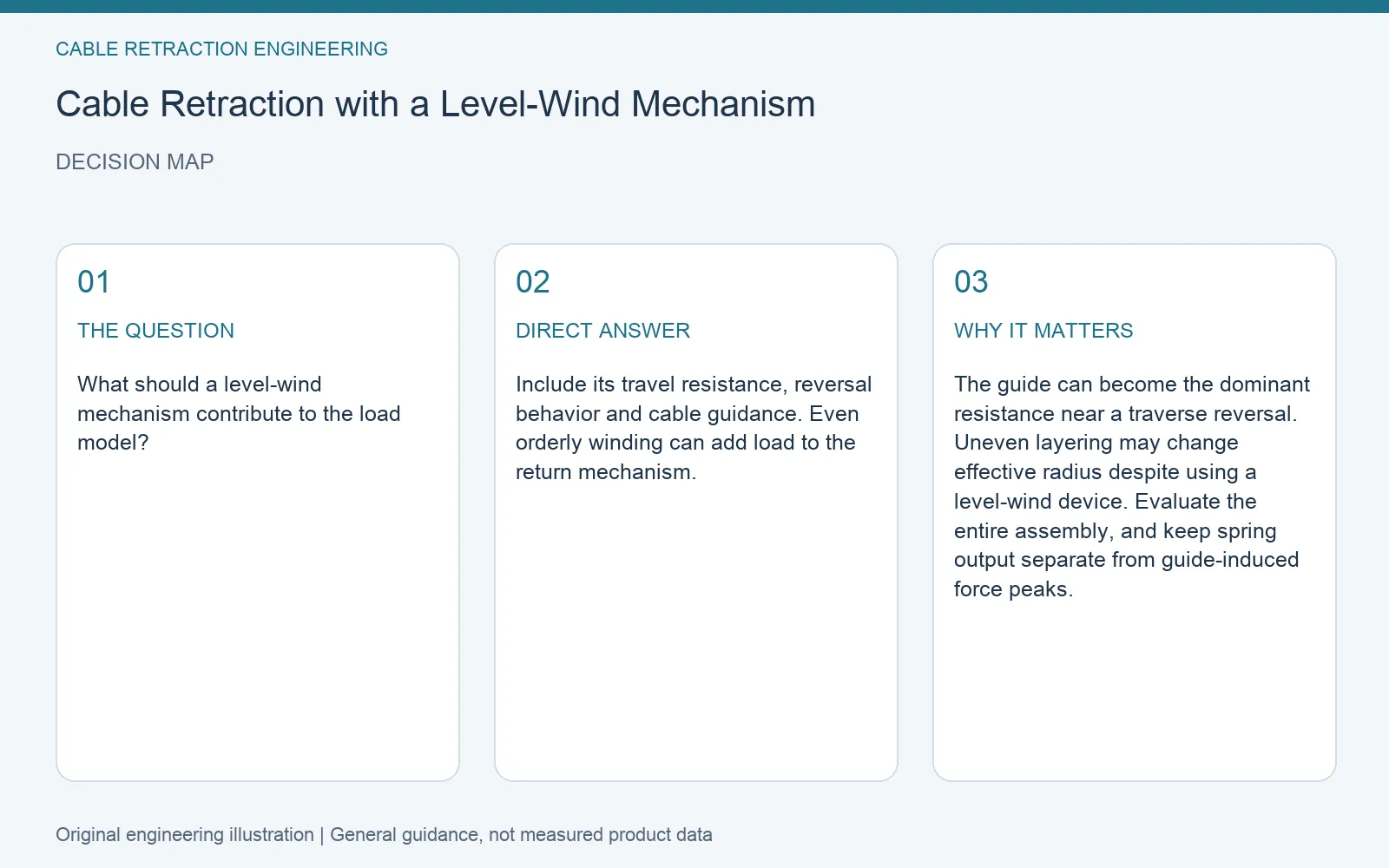

What should a level-wind mechanism contribute to the load model?
The guide can become the dominant resistance near a traverse reversal. Uneven layering may change effective radius despite using a level-wind device. Evaluate the entire assembly, and keep spring output separate from guide-induced force peaks.

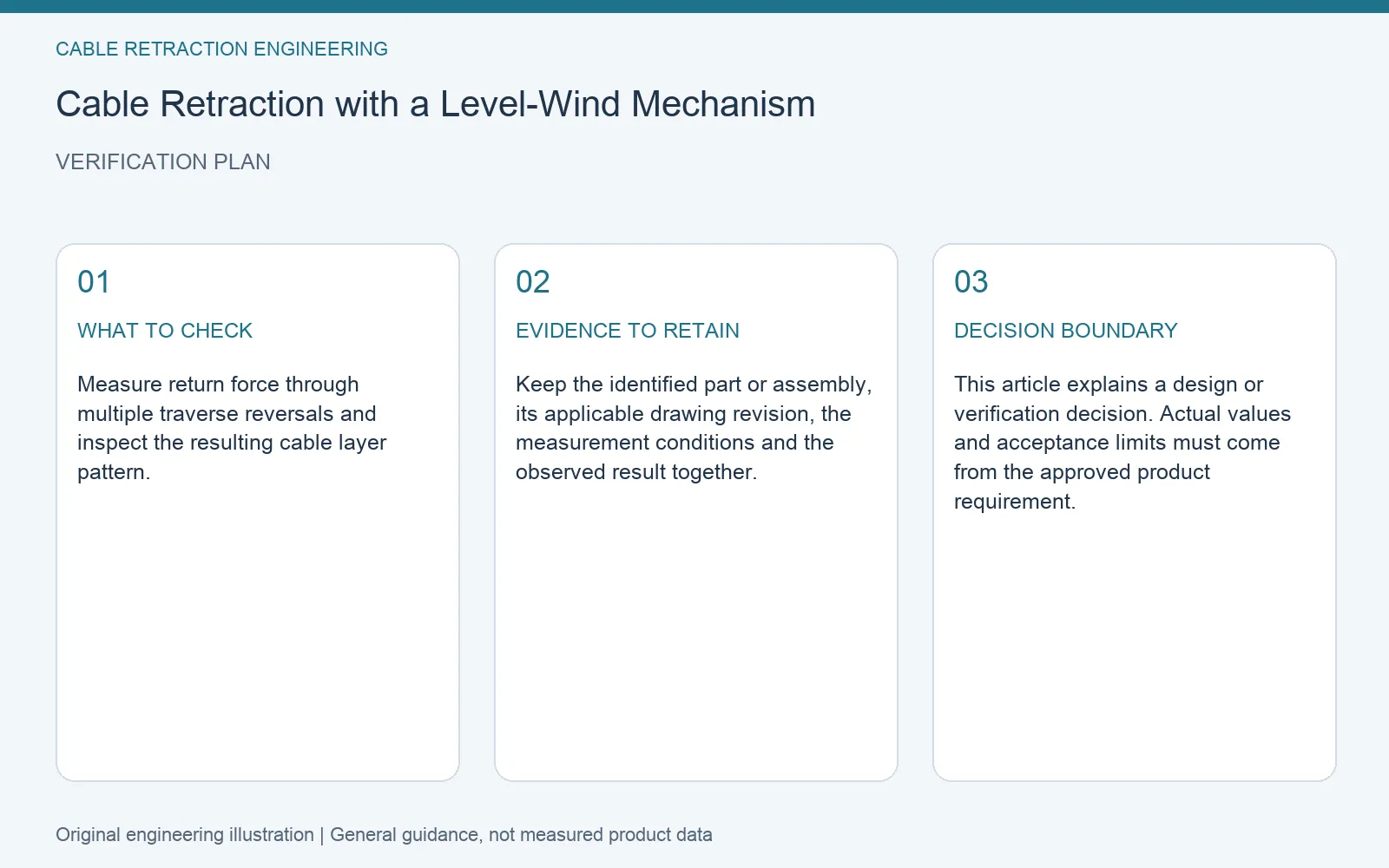

A practical verification method
Measure return force through multiple traverse reversals and inspect the resulting cable layer pattern.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Measure return force through multiple traverse reversals and inspect the resulting cable layer pattern. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
