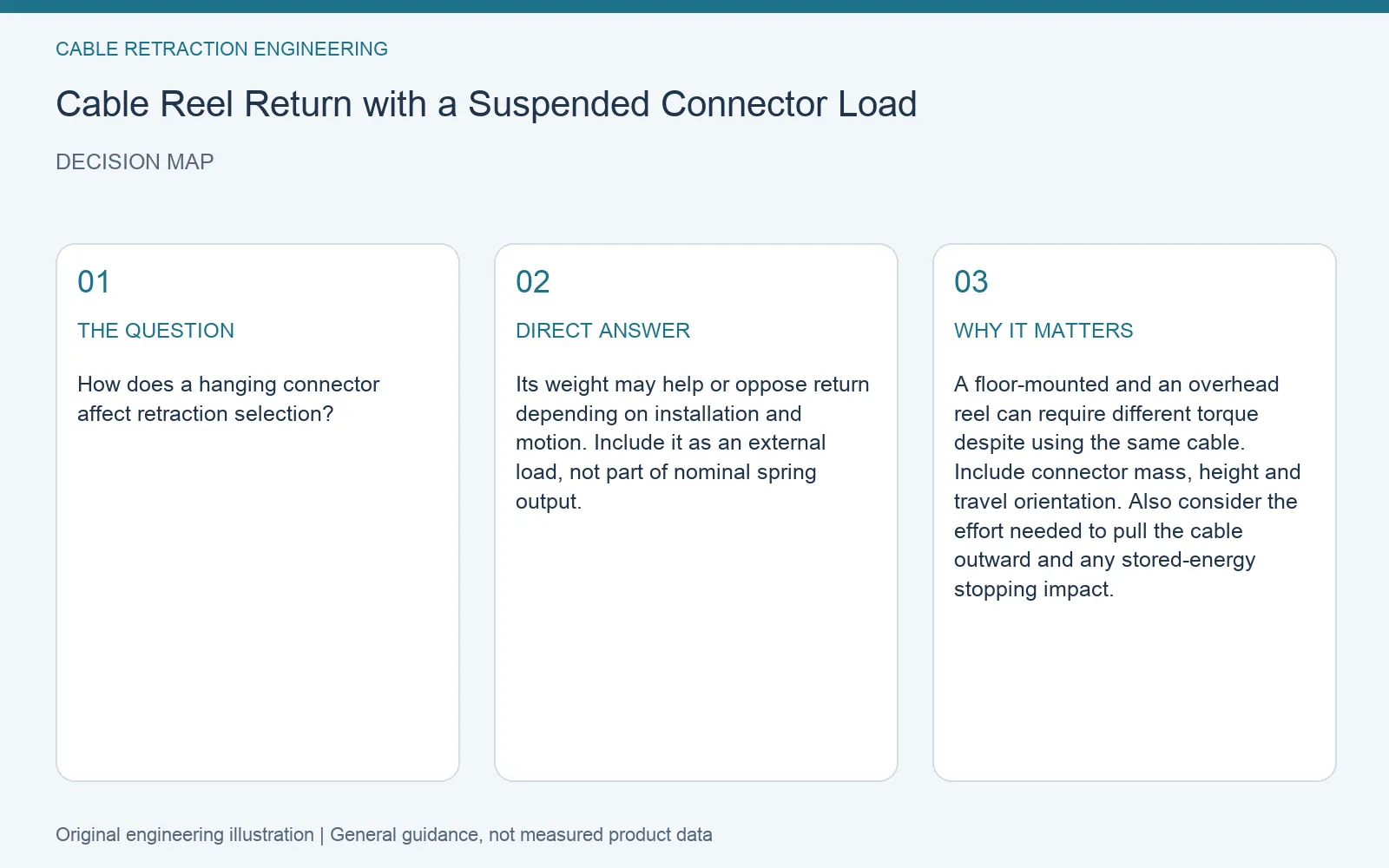

Quick answer: Its weight may help or oppose return depending on installation and motion. Include it as an external load, not part of nominal spring output.
How does a hanging connector affect retraction selection?
A floor-mounted and an overhead reel can require different torque despite using the same cable. Include connector mass, height and travel orientation. Also consider the effort needed to pull the cable outward and any stored-energy stopping impact.

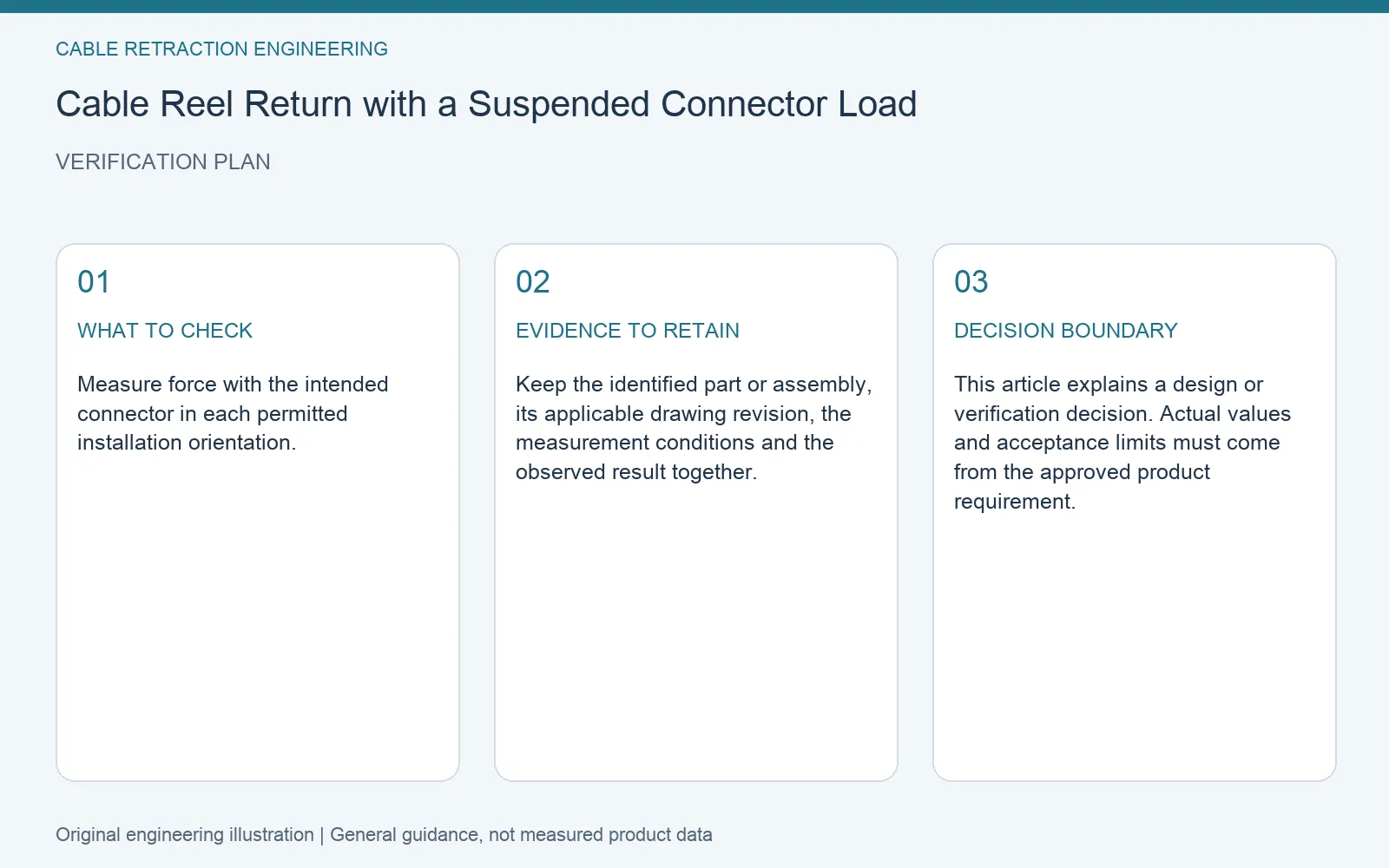

A practical verification method
Measure force with the intended connector in each permitted installation orientation.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Measure force with the intended connector in each permitted installation orientation. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
