Quick answer: The connector and strain-relief geometry can consume cable length or alter the final stop position.

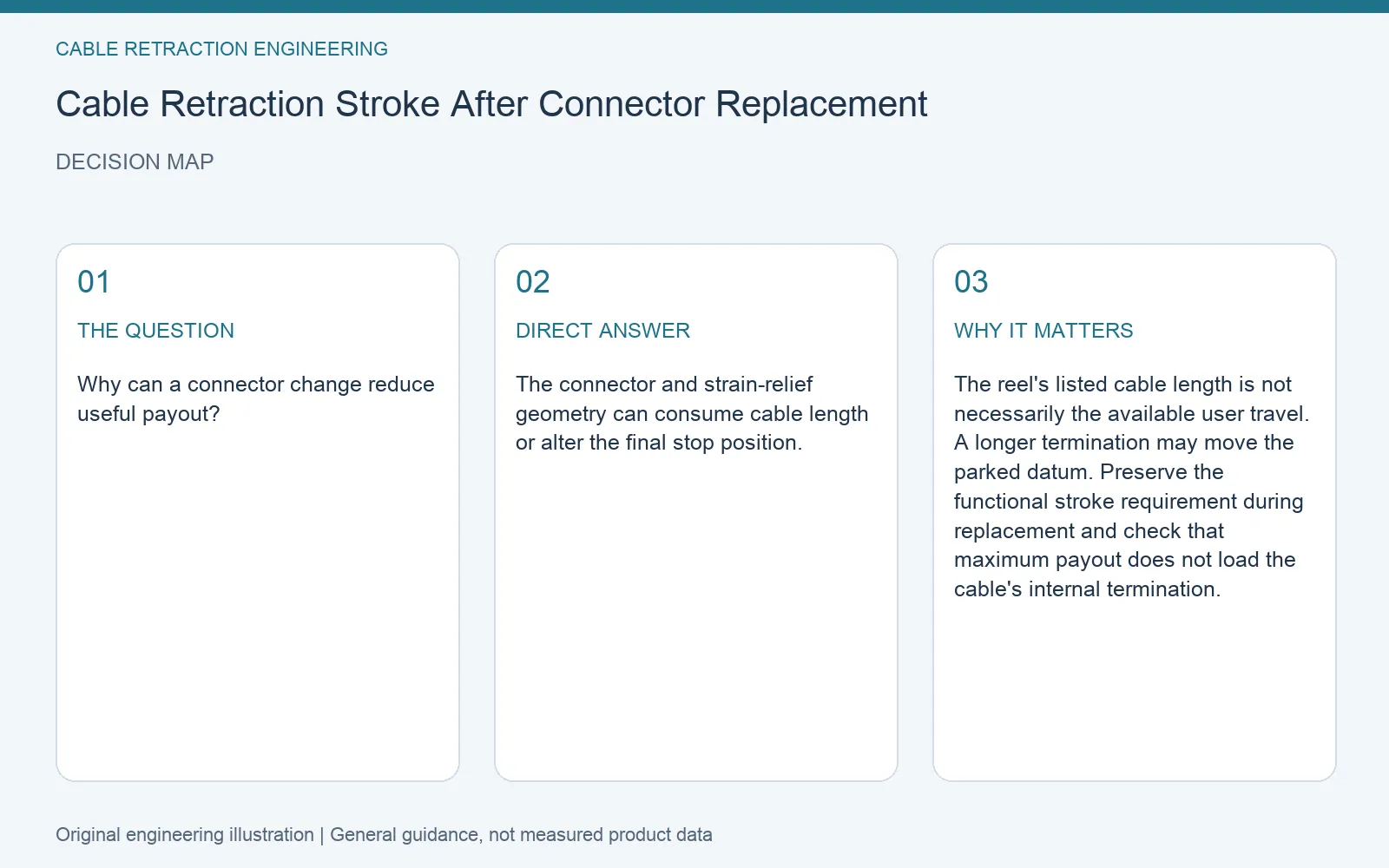

Why can a connector change reduce useful payout?
The reel's listed cable length is not necessarily the available user travel. A longer termination may move the parked datum. Preserve the functional stroke requirement during replacement and check that maximum payout does not load the cable's internal termination.

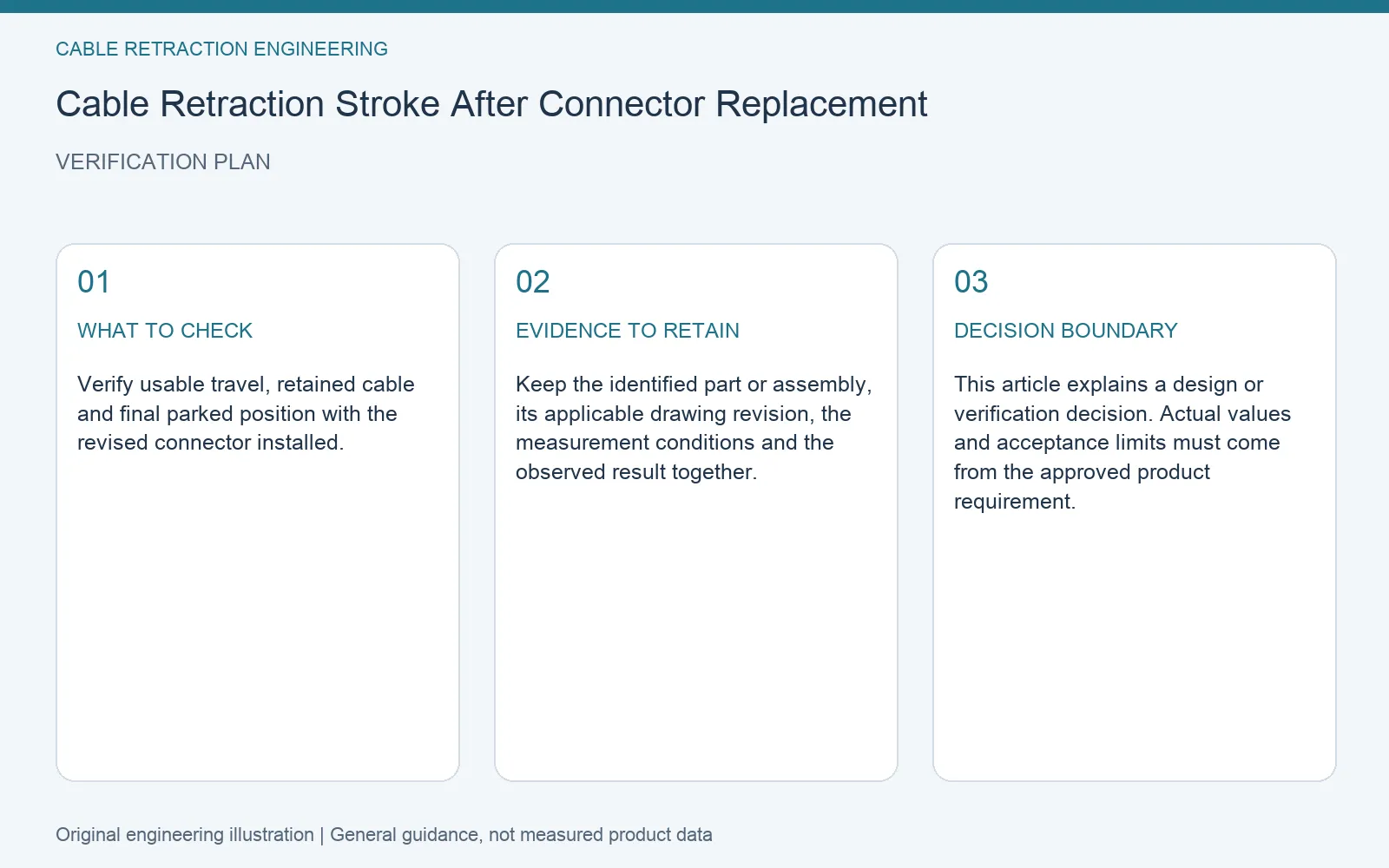

A practical verification method
Verify usable travel, retained cable and final parked position with the revised connector installed.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Verify usable travel, retained cable and final parked position with the revised connector installed. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
Editorial note: AI-assisted engineering guidance, prepared from the topic-specific reasoning shown here and the company’s public product context. Illustrations explain decisions; they are not customer-case photographs or test results. Product-specific suitability requires review against your approved requirements.
