A cable spring can provide compact, repeatable motion control in a cleanroom tool suspension when its force, travel, attachments and protection are designed around the complete assembly.
For engineering teams comparing compact return, counterbalance and positioning options, the spring should be evaluated as one part of the full mechanism. Shenzhen Leading Spring develops custom cable springs around the required load, motion, package, environment and production target.
Quick answer

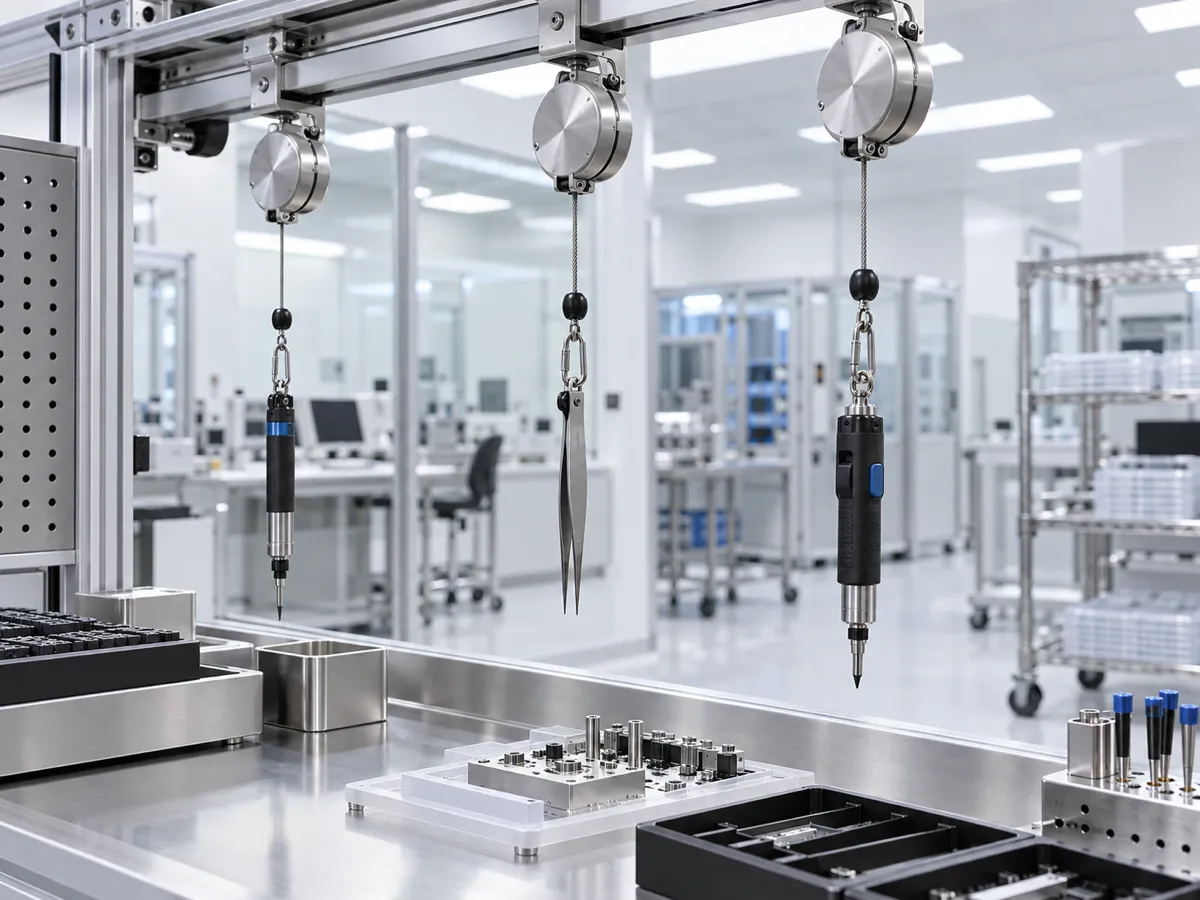

A sealed or suitably contained cable spring retractor supports precision tools above the work surface, reducing drops and keeping the bench clear. Materials, lubricants and wear particles must suit the cleanroom process. A production-ready design therefore balances user feel, reliable return or holding behavior, fatigue margin and safe mechanical stops.
Typical applications
- OEM cleanroom tool suspension assemblies
- Compact precision hand tool and cable return modules
- Custom mechanisms with limited installation space
- Prototype-to-production motion-control programs
How the mechanism works
A sealed or suitably contained cable spring retractor supports precision tools above the work surface, reducing drops and keeping the bench clear. Materials, lubricants and wear particles must suit the cleanroom process. The real output is also affected by bearings, guides, seals, cables, latches and manufacturing tolerances. Testing only the loose spring can miss the friction and alignment conditions that determine field performance.
Key design parameters
| Parameter | Why it matters |
|---|---|
| Moving load | Defines the force or torque needed at each position. |
| Travel and geometry | Determine spring working range, spool or pivot dimensions and preload. |
| Available envelope | Limits strip width, coil diameter, housing and attachment options. |
| Environment | Guides material, surface protection, lubricant and sealing choices. |
| Cycle-life target | Sets fatigue margin and validation duration. |
Failure modes to prevent
Common risks include particle generation, cable fray, tool drift, housing leakage, excessive pull and contamination from unsuitable lubricant. These are often caused by excessive working travel, sharp attachment geometry, poor alignment, contamination or a production assembly whose friction differs from the prototype.
Prototype and life testing
Measure pull force or operating torque at the start, middle and end of travel. Cycle the complete production-equivalent assembly at normal and worst-case extension, then inspect the spring edges, end attachments, guides, spool or pivot and mechanical stops. Add temperature, humidity, salt, dust, vibration or cleaning-agent exposure when the intended environment requires it.
What to include in an RFQ
Provide tool mass, vertical reach, desired balance force, cable material, cleanroom class, particle and lubricant limits, mounting height, and cycles. Drawings or a 3D model of both spring attachments and the complete motion path help the engineering team avoid assumptions.
Custom development support
Shenzhen Leading Spring supports application review, spring design, prototypes and production. Final material, dimensions, force, life and attachment details should be confirmed from customer drawings and mechanism tests. Contact the spring engineering team with your RFQ.
FAQ
How is the spring size selected for a cleanroom tool suspension?
Selection starts with the real load, travel, geometry, installation space, environment and target life. The mechanism should then be prototyped because guides, seals, locks and tolerances change the measured output.
Can one cable spring design cover several product variants?
Sometimes. A shared design is practical only when every variant remains inside the validated force, travel, temperature and cycle-life window.
Why are end stops important?
A dedicated stop should absorb foreseeable over-travel before the spring strip or attachment is overloaded. This improves durability and makes performance less dependent on user handling.
