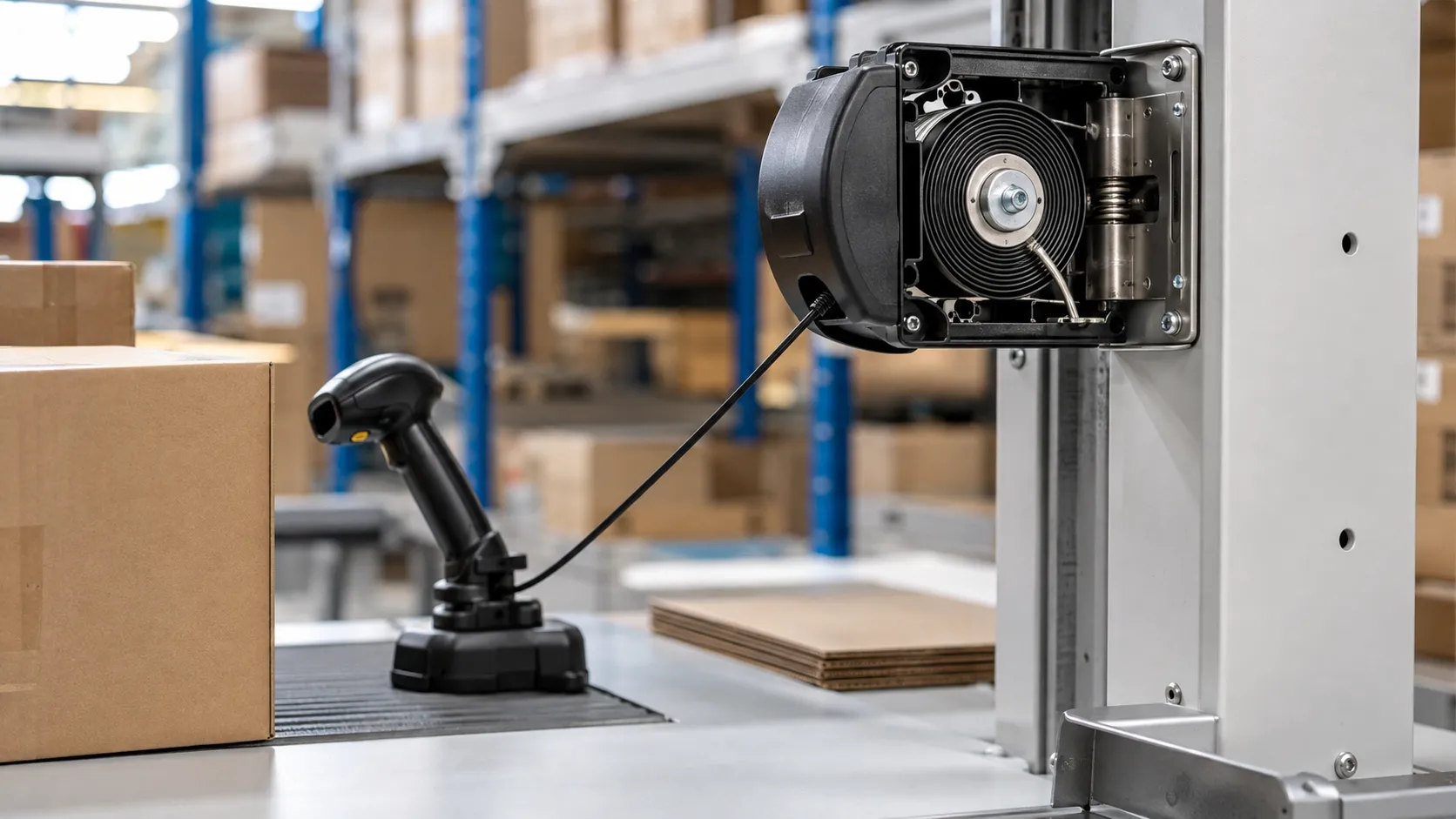

A cable spring retractor manages the tether of a warehouse barcode scanner by paying out cable during scanning and retrieving unused length when the scanner returns to its station.
For product teams comparing compact return and counterbalance options, the spring should be evaluated as part of the full mechanism. Shenzhen Leading Spring develops custom cable springs around the required load, motion, space, attachments, environment, and production target.
Quick answer: when is this spring solution suitable?
A cable spring retractor manages the tether of a warehouse barcode scanner by paying out cable during scanning and retrieving unused length when the scanner returns to its station. It is most suitable when the product needs repeatable mechanical force in a compact package and the spring can be protected from over-travel, sharp edges, and misalignment.
Where this mechanism is used
- Packing-station scanners
- Order-picking terminals
- Industrial handheld readers
- Retail and logistics service counters
How the spring works in the assembly
The operator should feel a light, predictable pull rather than a strong tug at maximum reach. Cable bend radius, exit angle, reel diameter, and guide friction affect both electrical life and retraction quality. The retractor must also protect the scanner connector from repeated side load and prevent the cable from stacking or crossing on the reel.
Key design parameters
| Parameter | Why it matters |
|---|---|
| Cable diameter and jacket | Determine bend radius and wear behavior. |
| Required reach | Sets reel turns and stored cable length. |
| Target pull force | Affects operator comfort and reliable return. |
| Exit-angle range | Drives guide and swivel design. |
| Daily scan cycles | Set durability and test duration. |
Common failure modes to prevent
Watch for cable jacket polishing, conductor fatigue near the connector, uneven winding, reel jams, weak final return, and excessive pull at full extension. These faults are frequently routing problems, so spring testing must use the production cable and outlet geometry.
Recommended prototype and life testing
Measure pull force at several extensions and angles. Cycle the scanner through representative pick-and-place motions, including off-axis pulls and accidental over-travel. Perform electrical continuity checks during cycling and inspect the jacket, strain relief, reel flange, and spring attachment.
What to include in an RFQ
Send cable diameter, length, minimum bend radius, connector mass, required reach, pull angles, desired force range, mounting orientation, housing space, daily usage estimate, and life target.
Custom spring development support
Shenzhen Leading Spring supports application review, custom spring design, prototypes, and production. Final force, torque, material, dimensions, and attachment details should be confirmed from the customer’s drawings and mechanism tests. To discuss a new project, contact our spring engineering team.
FAQ
Will a cable retractor damage a scanner connector?
It should not when pull force, strain relief, cable routing, and end stops are correctly designed and validated.
Can the pull force remain the same through the full reach?
It can be controlled within a useful range, but the complete reel geometry and spring type determine the actual force curve.
Is an over-travel stop necessary?
Yes in most public or industrial applications. It protects the spring, cable, and connector from abusive pulls.
