Quick answer: Spacing determines the transfer path and clearances. An arrangement that fits physically may still introduce strip interference or unsuitable curvature.

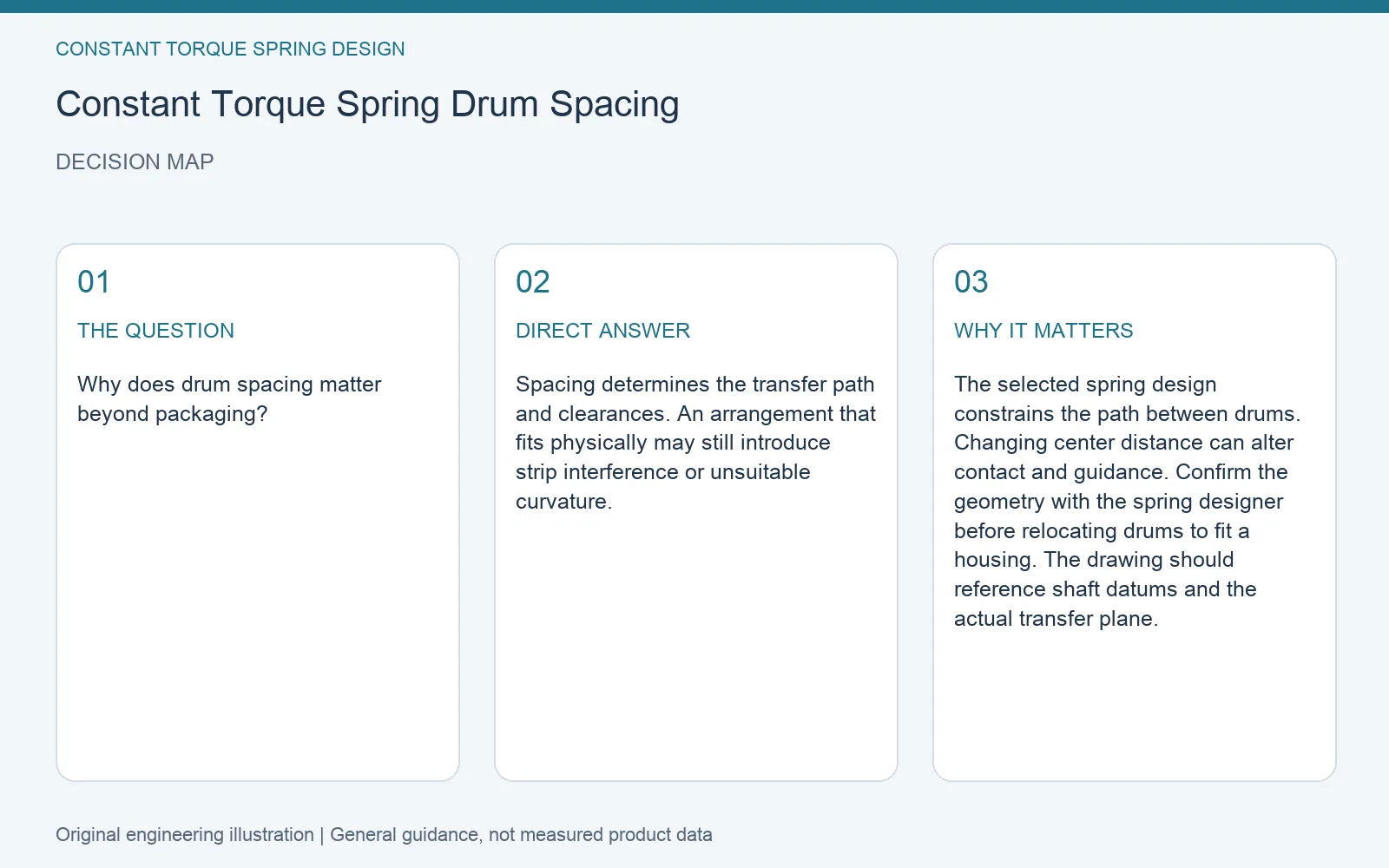

Why does drum spacing matter beyond packaging?
The selected spring design constrains the path between drums. Changing center distance can alter contact and guidance. Confirm the geometry with the spring designer before relocating drums to fit a housing. The drawing should reference shaft datums and the actual transfer plane.

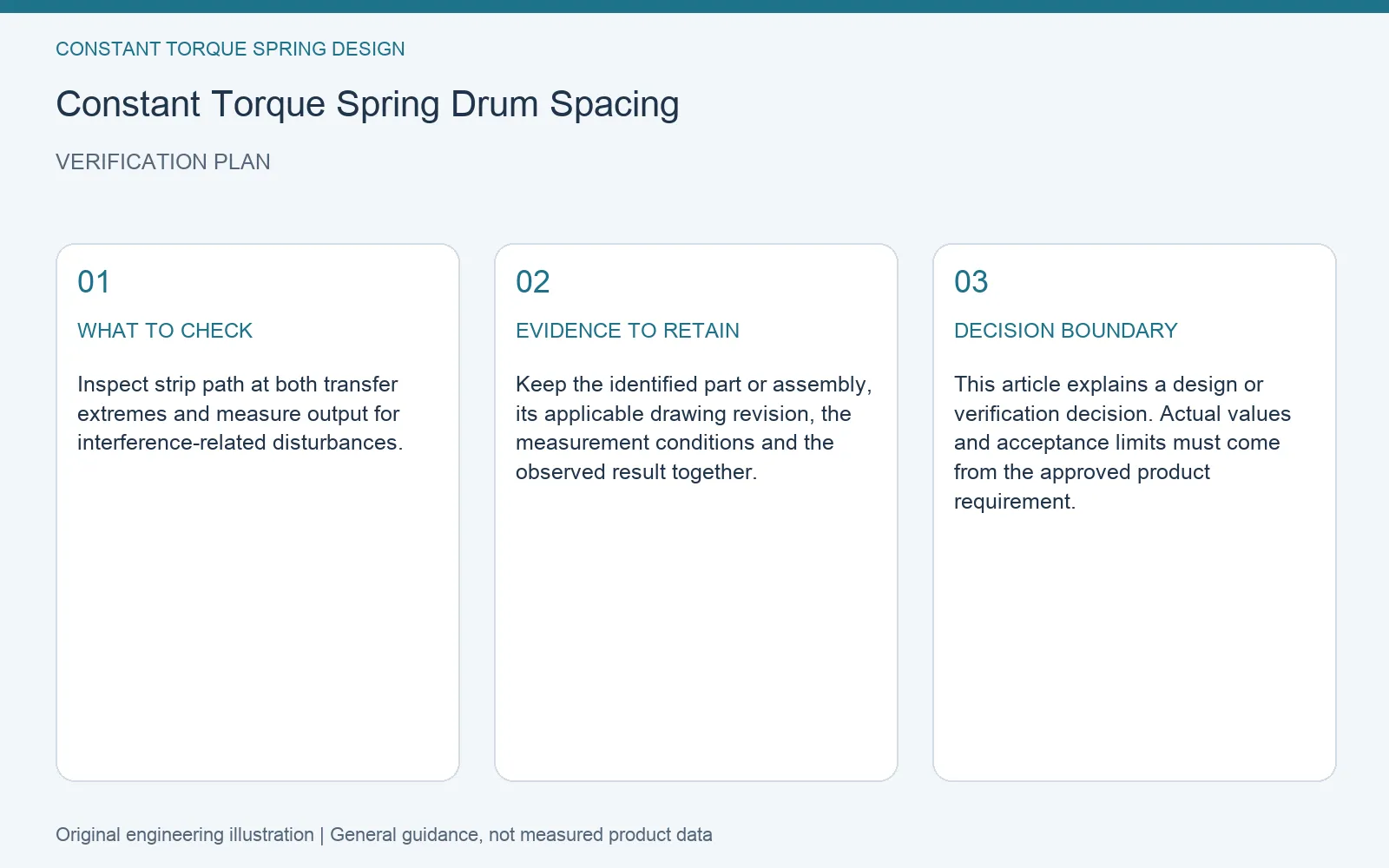

A practical verification method
Inspect strip path at both transfer extremes and measure output for interference-related disturbances.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Inspect strip path at both transfer extremes and measure output for interference-related disturbances. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
