Quick answer: Check shaft parallelism, flange alignment and transfer-plane position before attributing walking to the spring.

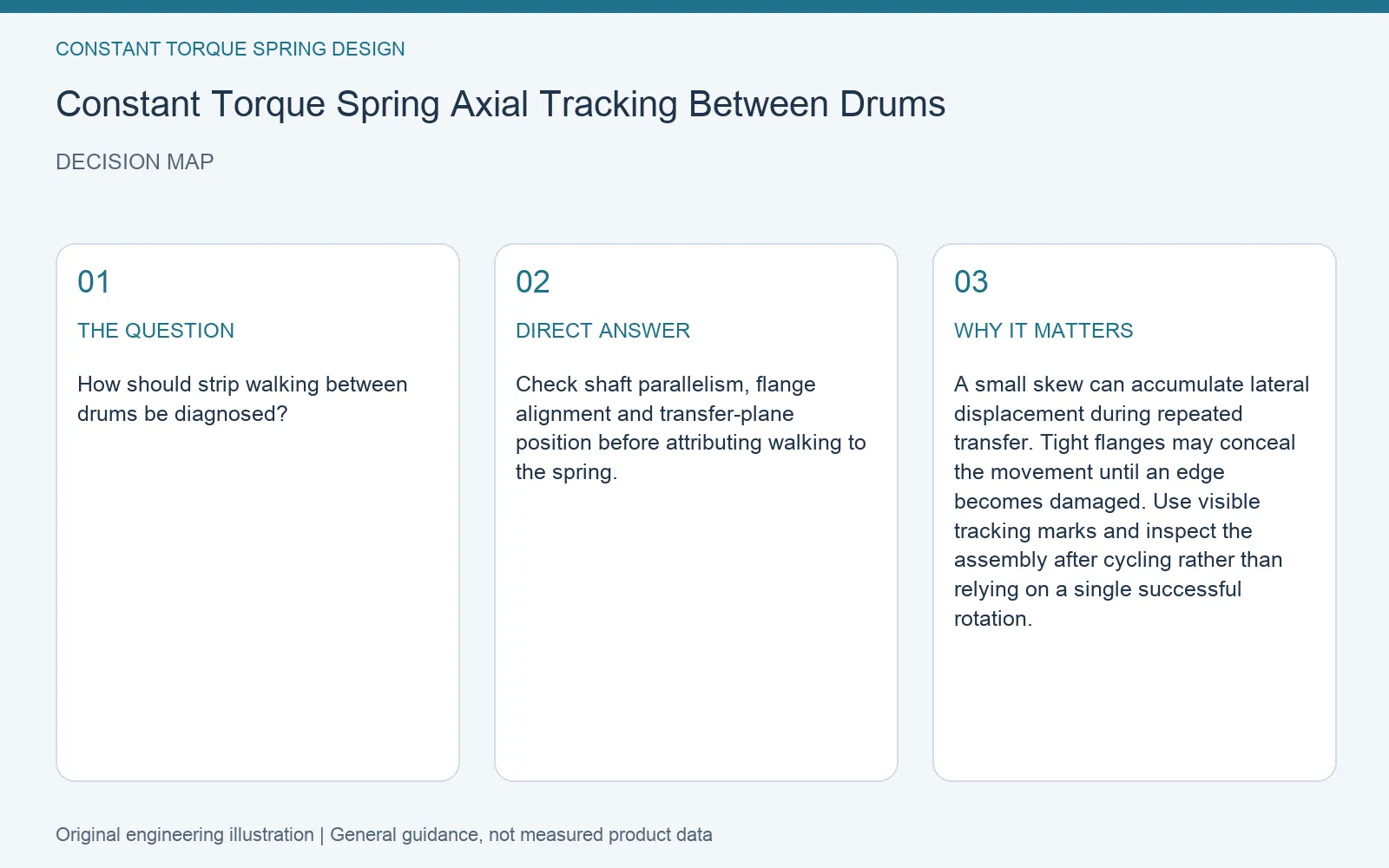

How should strip walking between drums be diagnosed?
A small skew can accumulate lateral displacement during repeated transfer. Tight flanges may conceal the movement until an edge becomes damaged. Use visible tracking marks and inspect the assembly after cycling rather than relying on a single successful rotation.

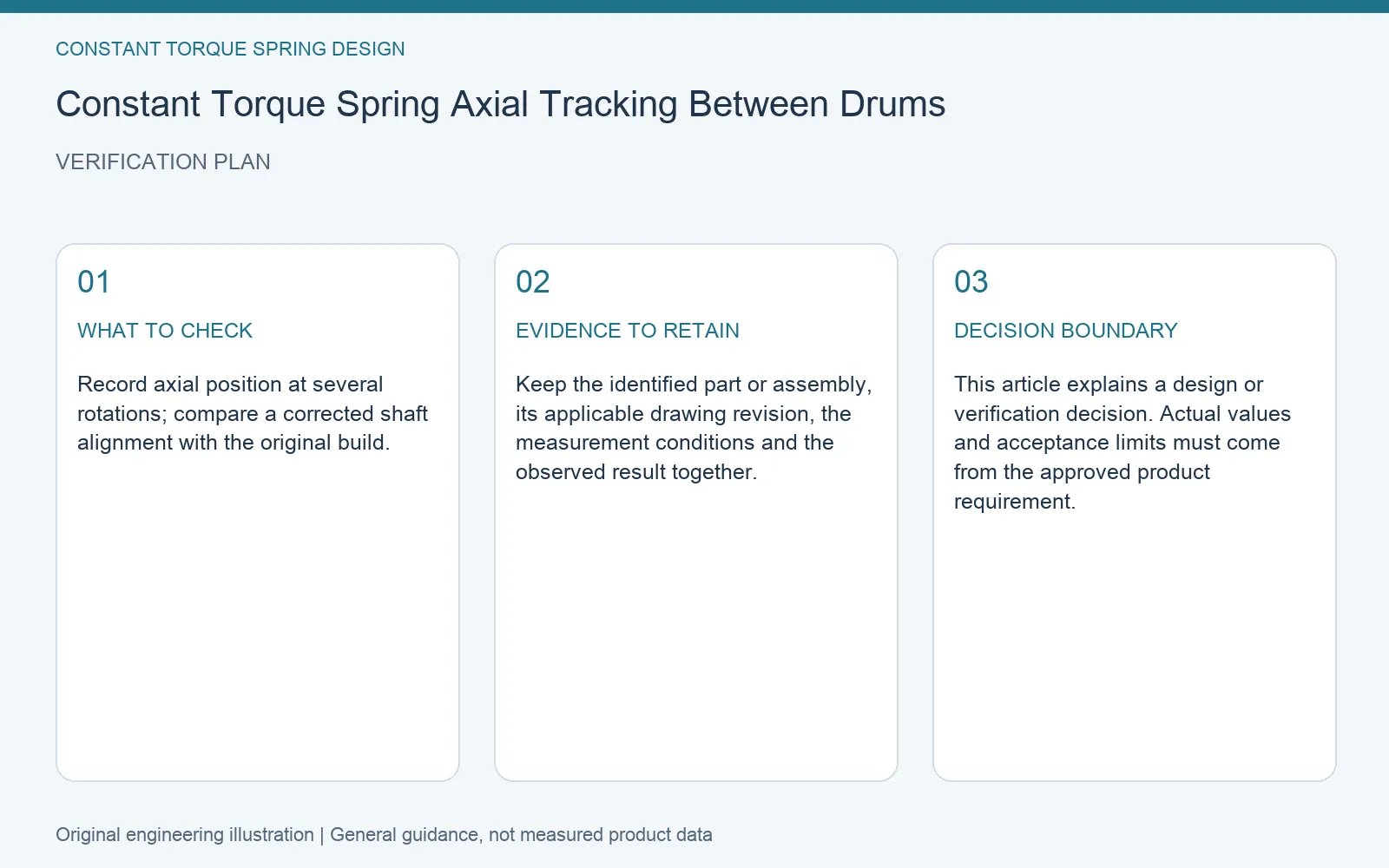

A practical verification method
Record axial position at several rotations; compare a corrected shaft alignment with the original build.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Record axial position at several rotations; compare a corrected shaft alignment with the original build. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
