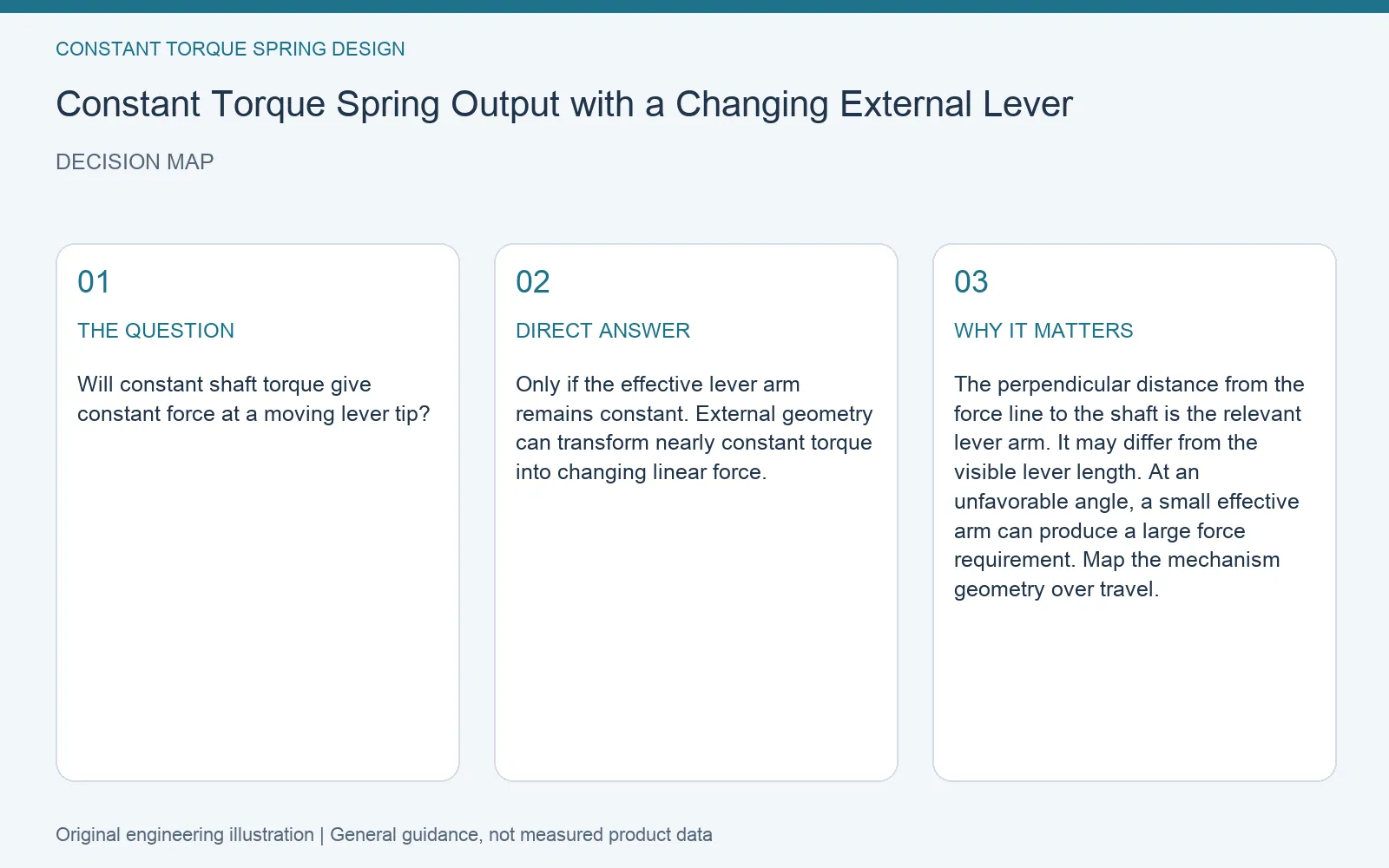

Quick answer: Only if the effective lever arm remains constant. External geometry can transform nearly constant torque into changing linear force.
Will constant shaft torque give constant force at a moving lever tip?
The perpendicular distance from the force line to the shaft is the relevant lever arm. It may differ from the visible lever length. At an unfavorable angle, a small effective arm can produce a large force requirement. Map the mechanism geometry over travel.

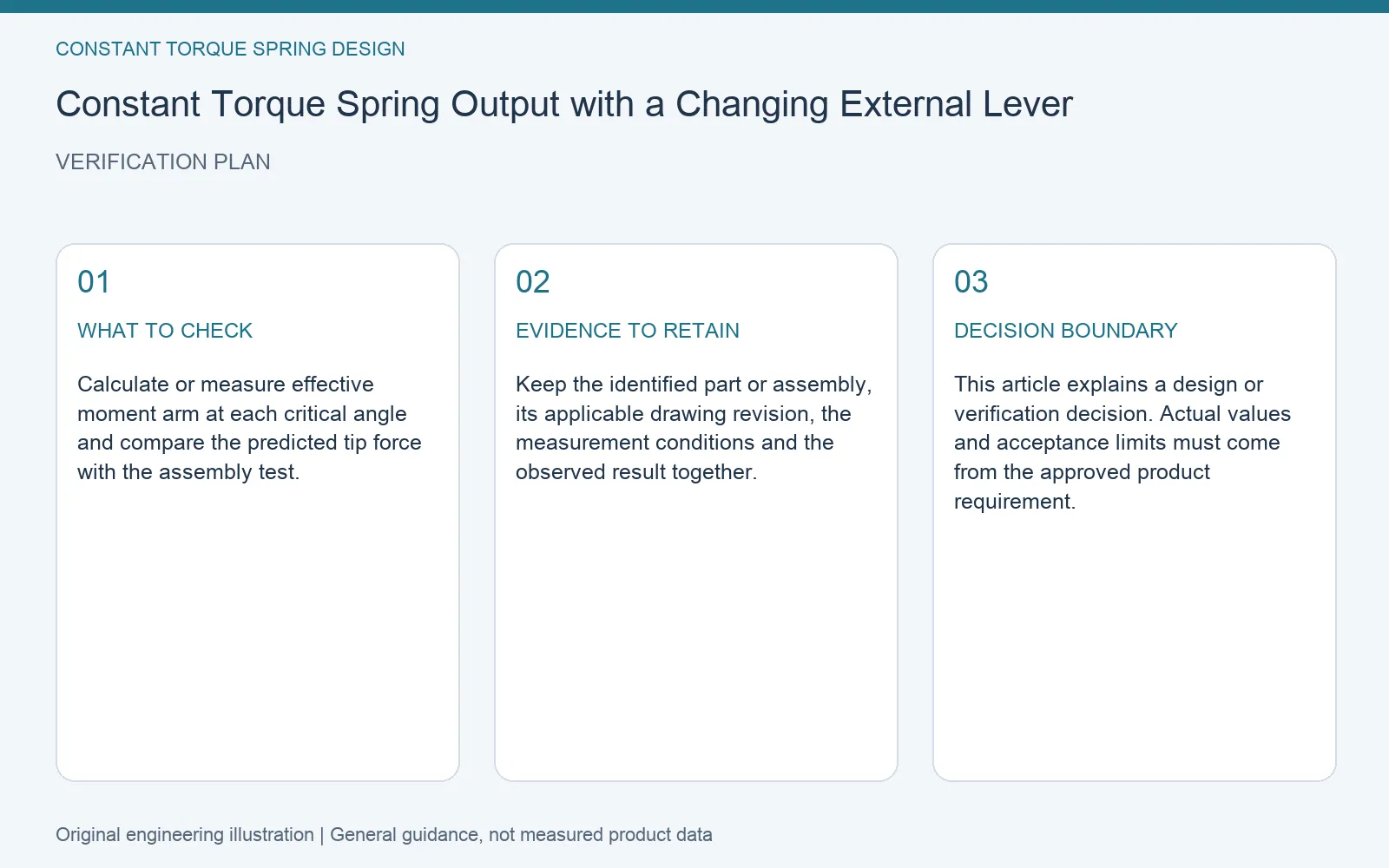

A practical verification method
Calculate or measure effective moment arm at each critical angle and compare the predicted tip force with the assembly test.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Calculate or measure effective moment arm at each critical angle and compare the predicted tip force with the assembly test. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
