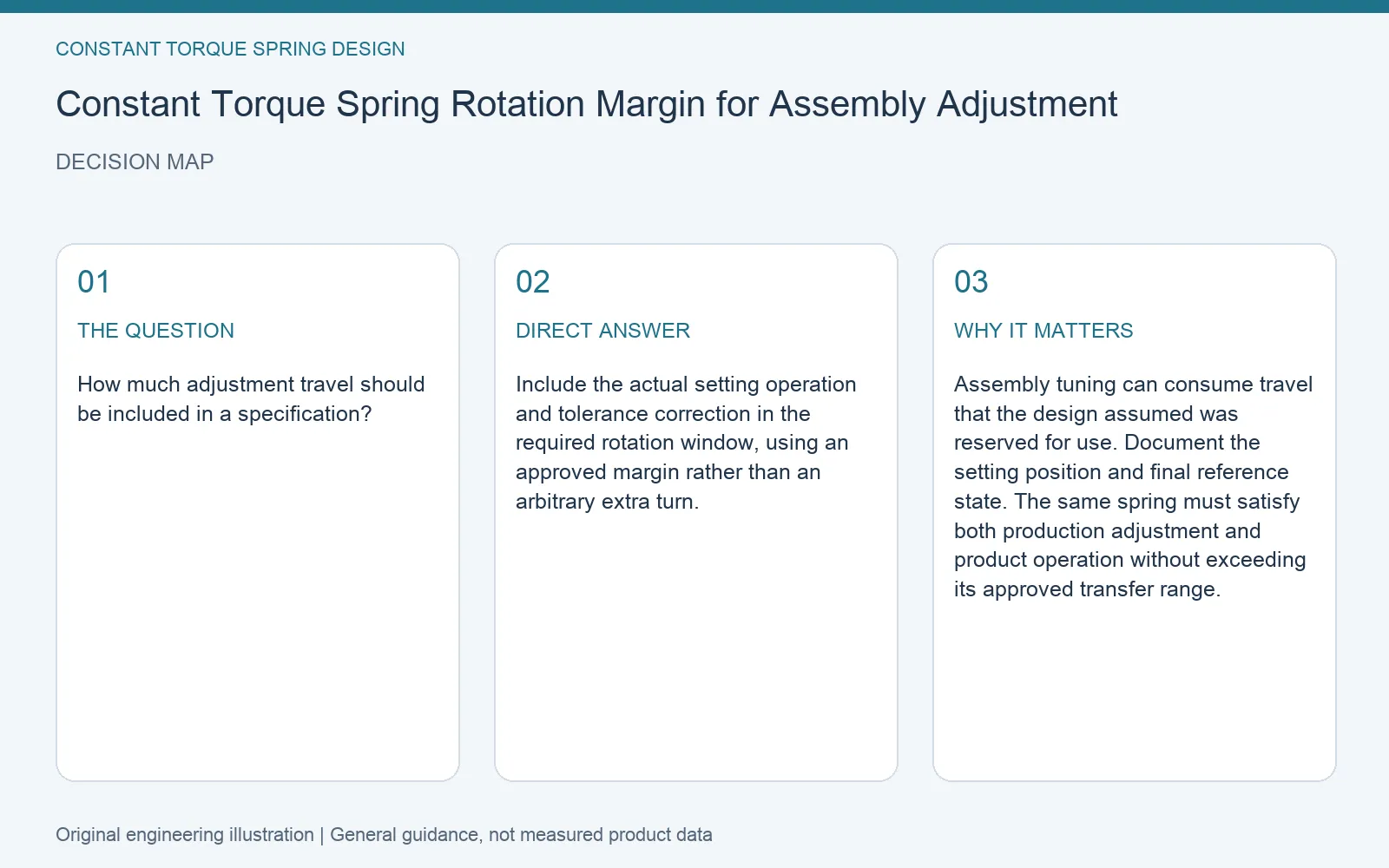

Quick answer: Include the actual setting operation and tolerance correction in the required rotation window, using an approved margin rather than an arbitrary extra turn.
How much adjustment travel should be included in a specification?
Assembly tuning can consume travel that the design assumed was reserved for use. Document the setting position and final reference state. The same spring must satisfy both production adjustment and product operation without exceeding its approved transfer range.

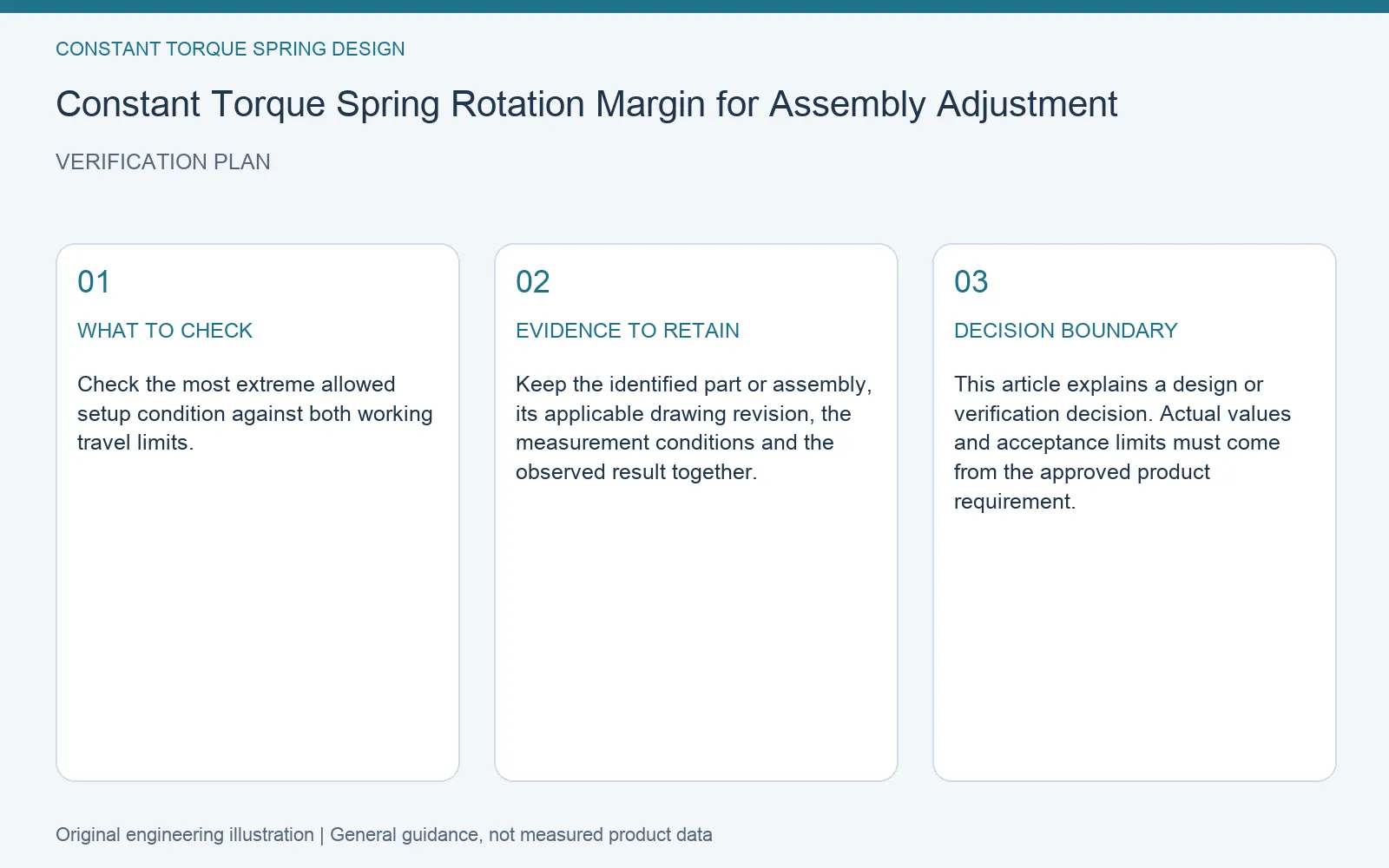

A practical verification method
Check the most extreme allowed setup condition against both working travel limits.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Check the most extreme allowed setup condition against both working travel limits. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
