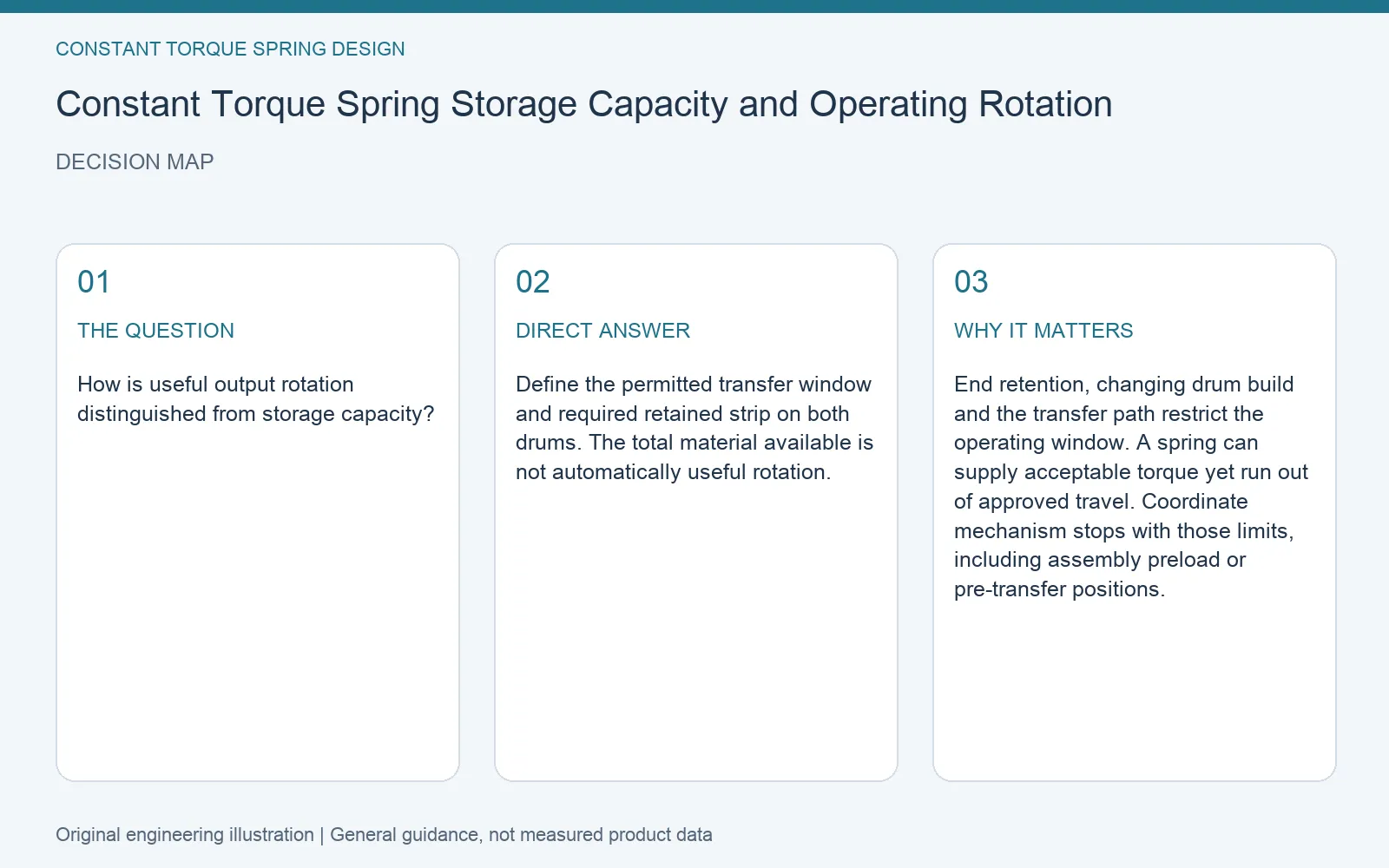

Quick answer: Define the permitted transfer window and required retained strip on both drums. The total material available is not automatically useful rotation.
How is useful output rotation distinguished from storage capacity?
End retention, changing drum build and the transfer path restrict the operating window. A spring can supply acceptable torque yet run out of approved travel. Coordinate mechanism stops with those limits, including assembly preload or pre-transfer positions.

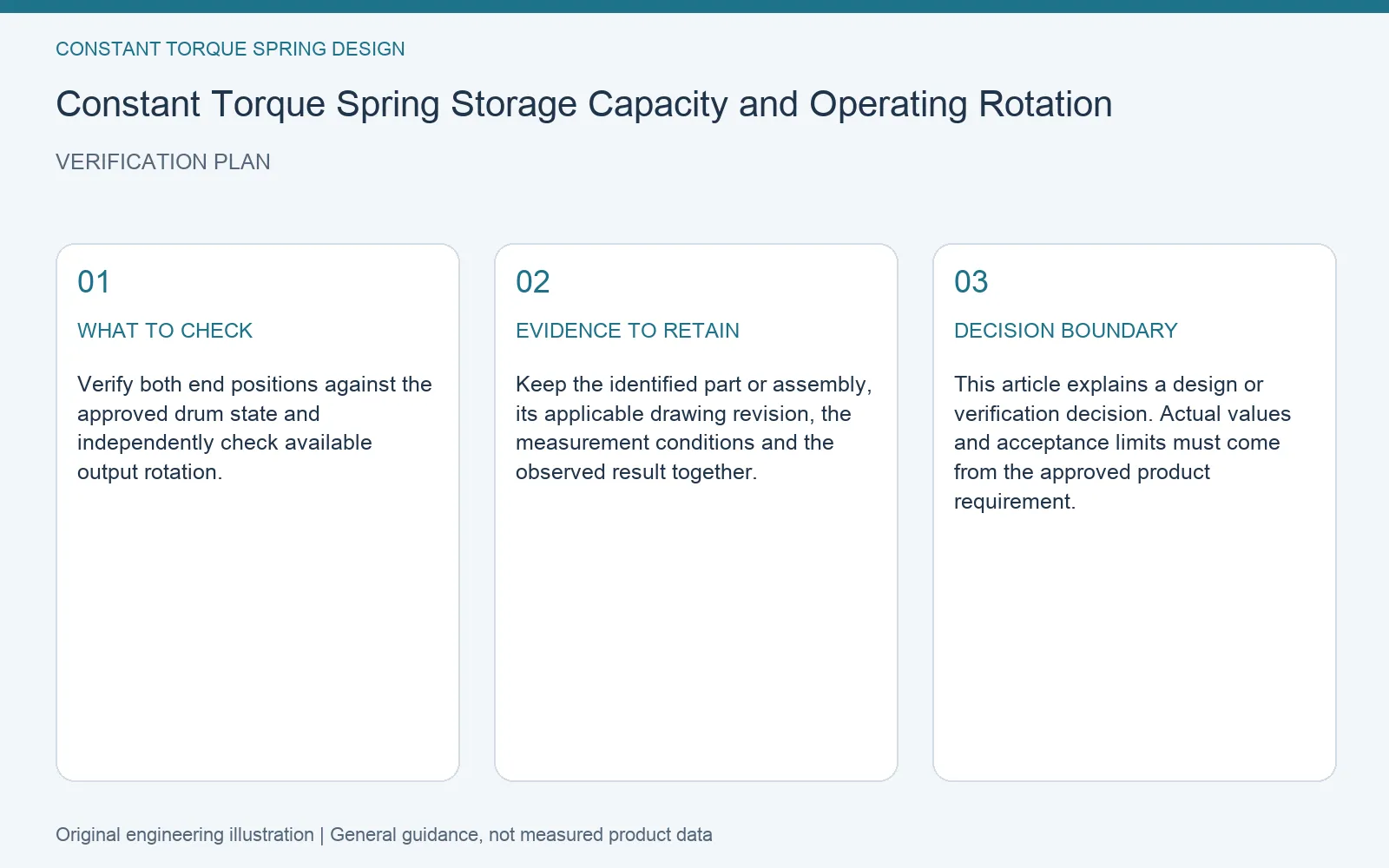

A practical verification method
Verify both end positions against the approved drum state and independently check available output rotation.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Verify both end positions against the approved drum state and independently check available output rotation. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
Editorial note: AI-assisted engineering guidance, prepared from the topic-specific reasoning shown here and the company’s public product context. Illustrations explain decisions; they are not customer-case photographs or test results. Product-specific suitability requires review against your approved requirements.
