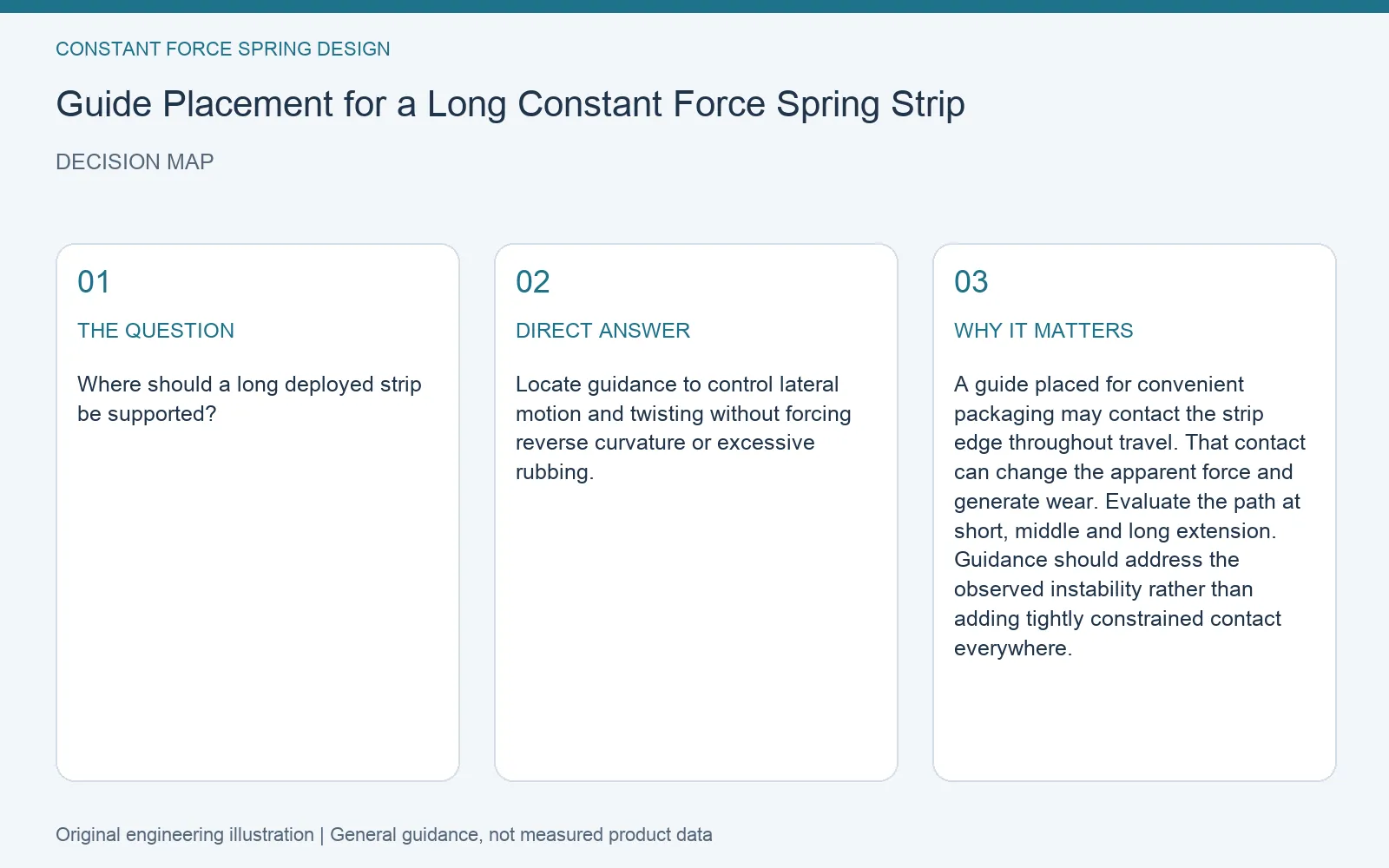

Quick answer: Locate guidance to control lateral motion and twisting without forcing reverse curvature or excessive rubbing.
Where should a long deployed strip be supported?
A guide placed for convenient packaging may contact the strip edge throughout travel. That contact can change the apparent force and generate wear. Evaluate the path at short, middle and long extension. Guidance should address the observed instability rather than adding tightly constrained contact everywhere.

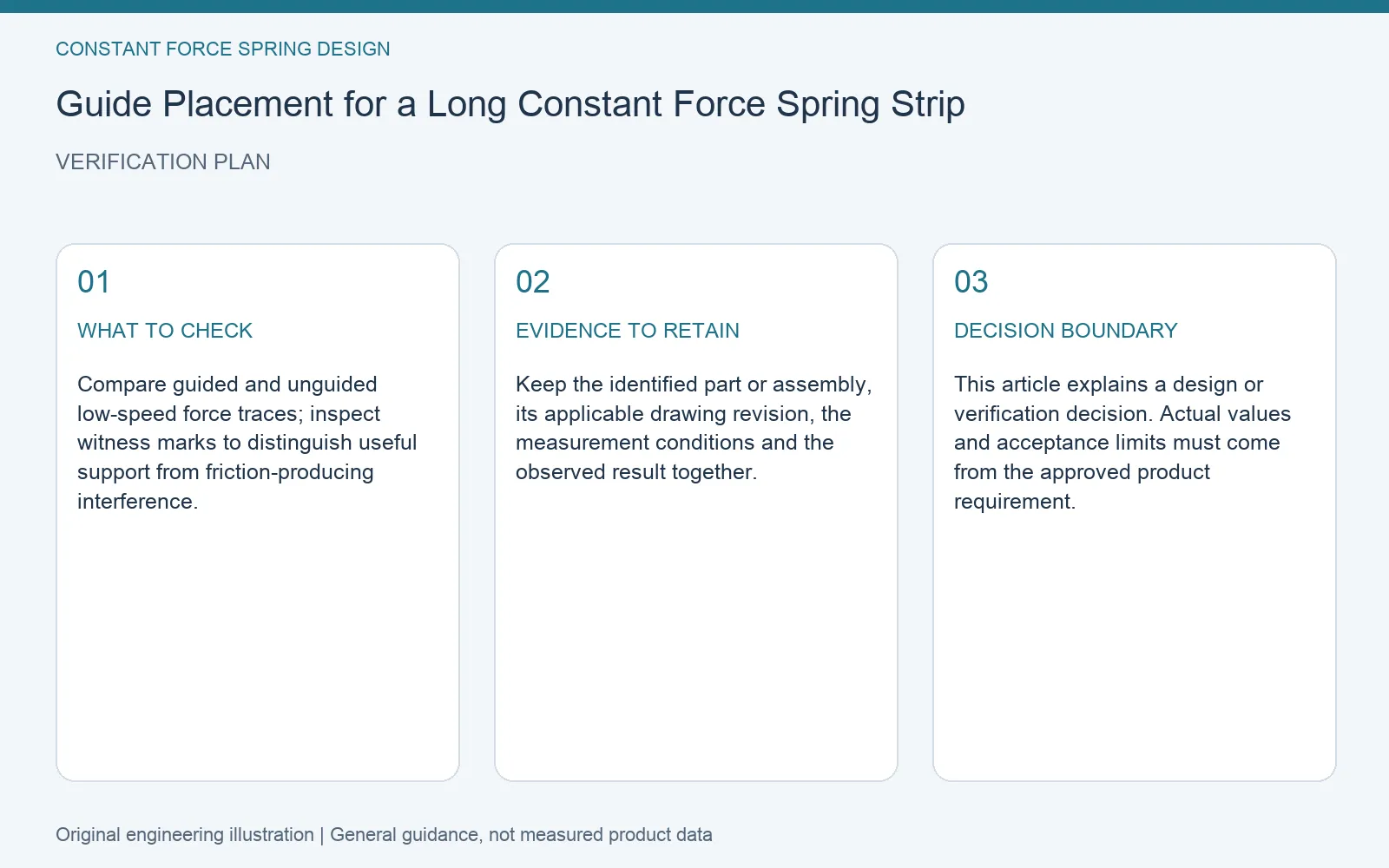

A practical verification method
Compare guided and unguided low-speed force traces; inspect witness marks to distinguish useful support from friction-producing interference.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Compare guided and unguided low-speed force traces; inspect witness marks to distinguish useful support from friction-producing interference. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
