Quick answer: State maximum working extension and the retained-wrap requirement on the assembly drawing, using the selected spring design's approved limit.

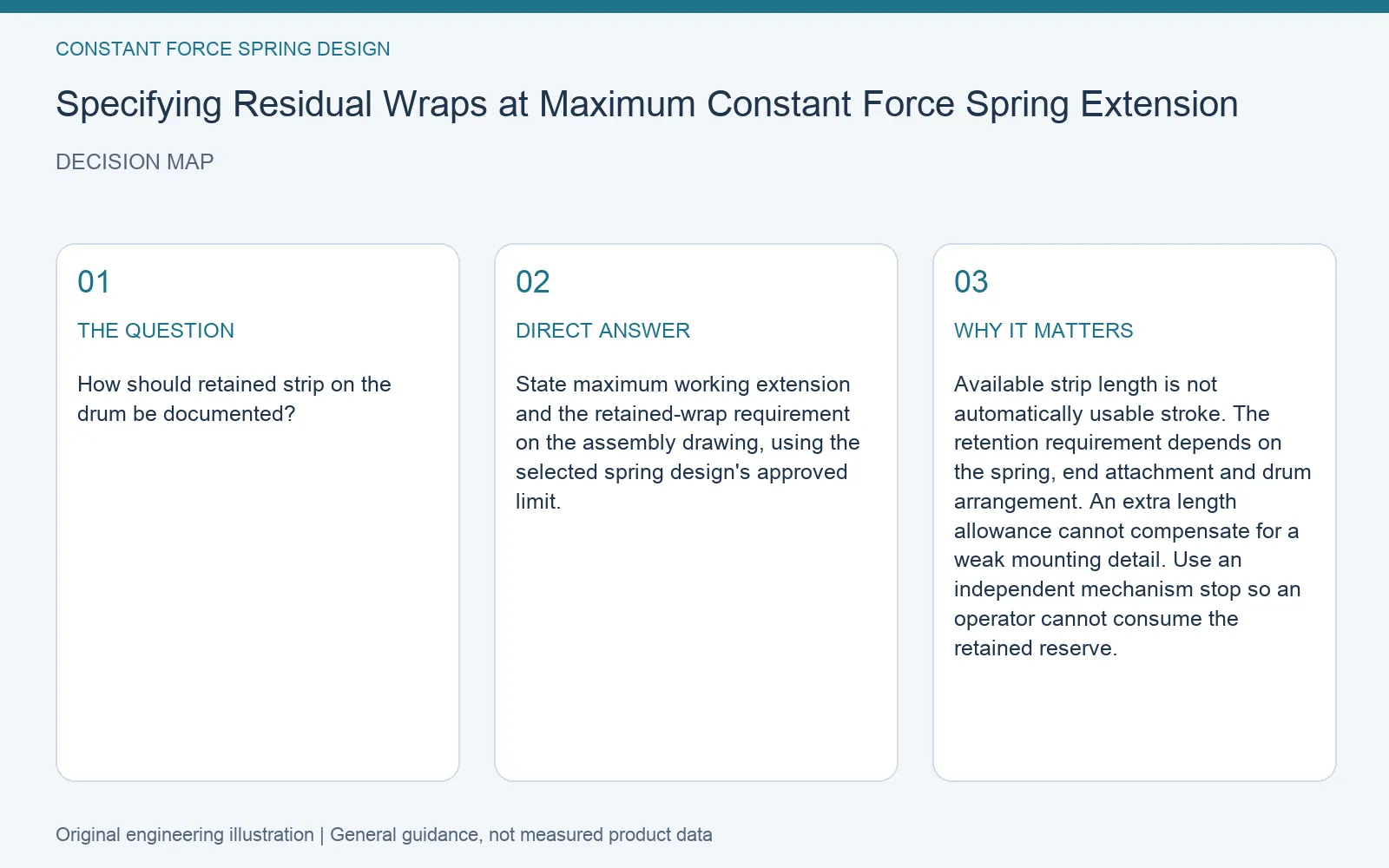

How should retained strip on the drum be documented?
Available strip length is not automatically usable stroke. The retention requirement depends on the spring, end attachment and drum arrangement. An extra length allowance cannot compensate for a weak mounting detail. Use an independent mechanism stop so an operator cannot consume the retained reserve.

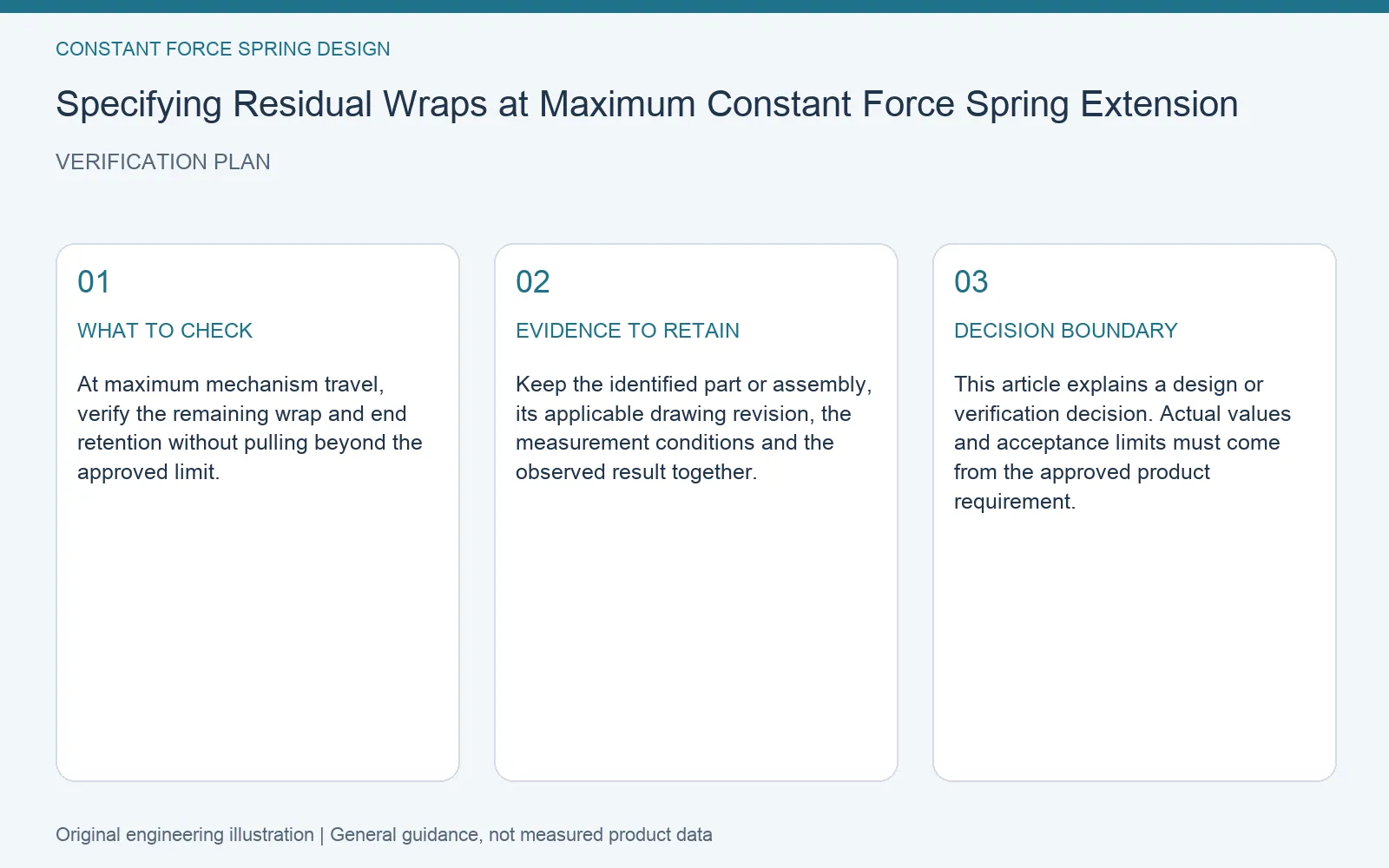

A practical verification method
At maximum mechanism travel, verify the remaining wrap and end retention without pulling beyond the approved limit.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | At maximum mechanism travel, verify the remaining wrap and end retention without pulling beyond the approved limit. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
Review the related Leading Spring product information. For a project-specific review, send the mechanism description, available geometry and the evidence relevant to this decision through the contact page.
