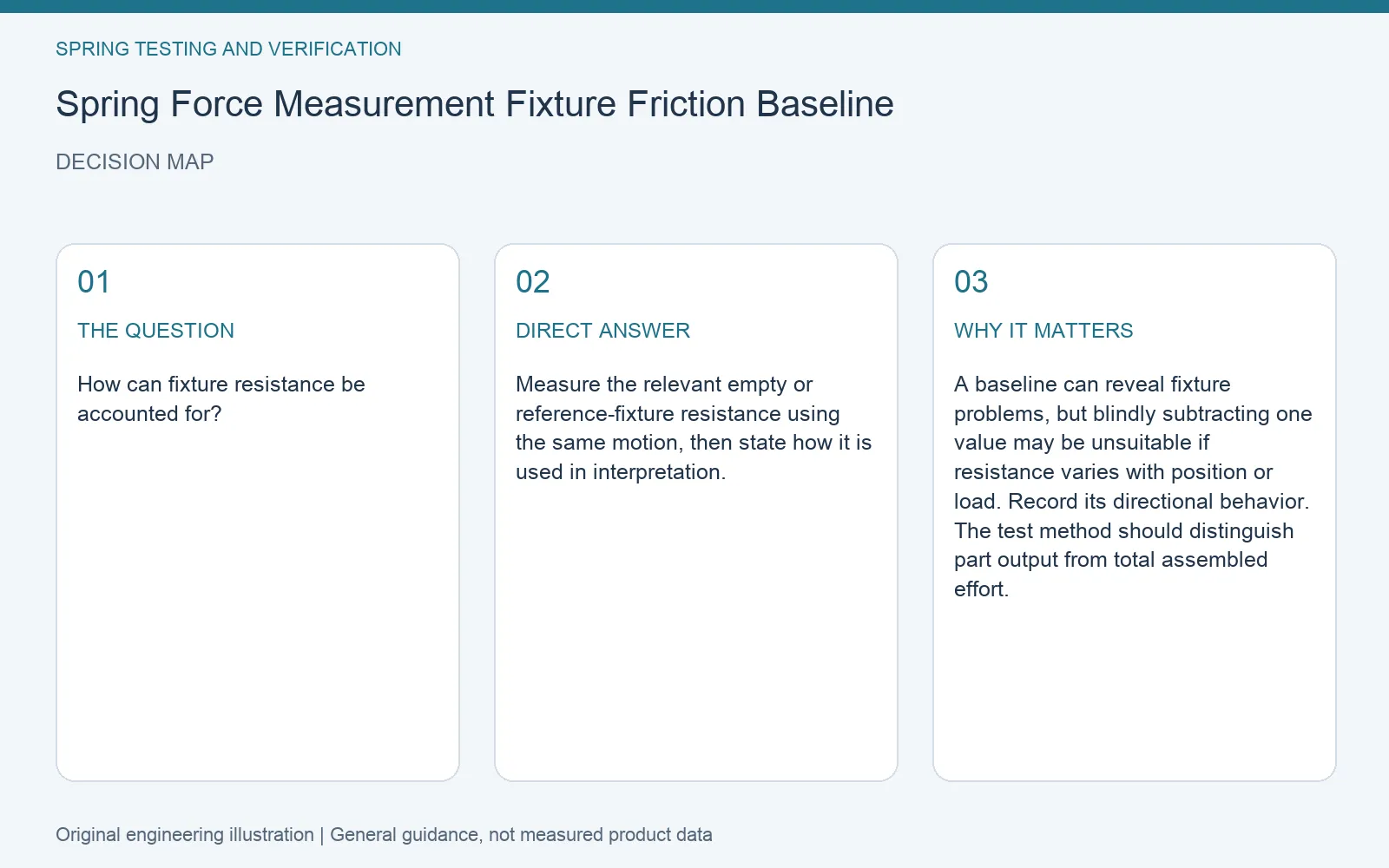

Quick answer: Measure the relevant empty or reference-fixture resistance using the same motion, then state how it is used in interpretation.
How can fixture resistance be accounted for?
A baseline can reveal fixture problems, but blindly subtracting one value may be unsuitable if resistance varies with position or load. Record its directional behavior. The test method should distinguish part output from total assembled effort.

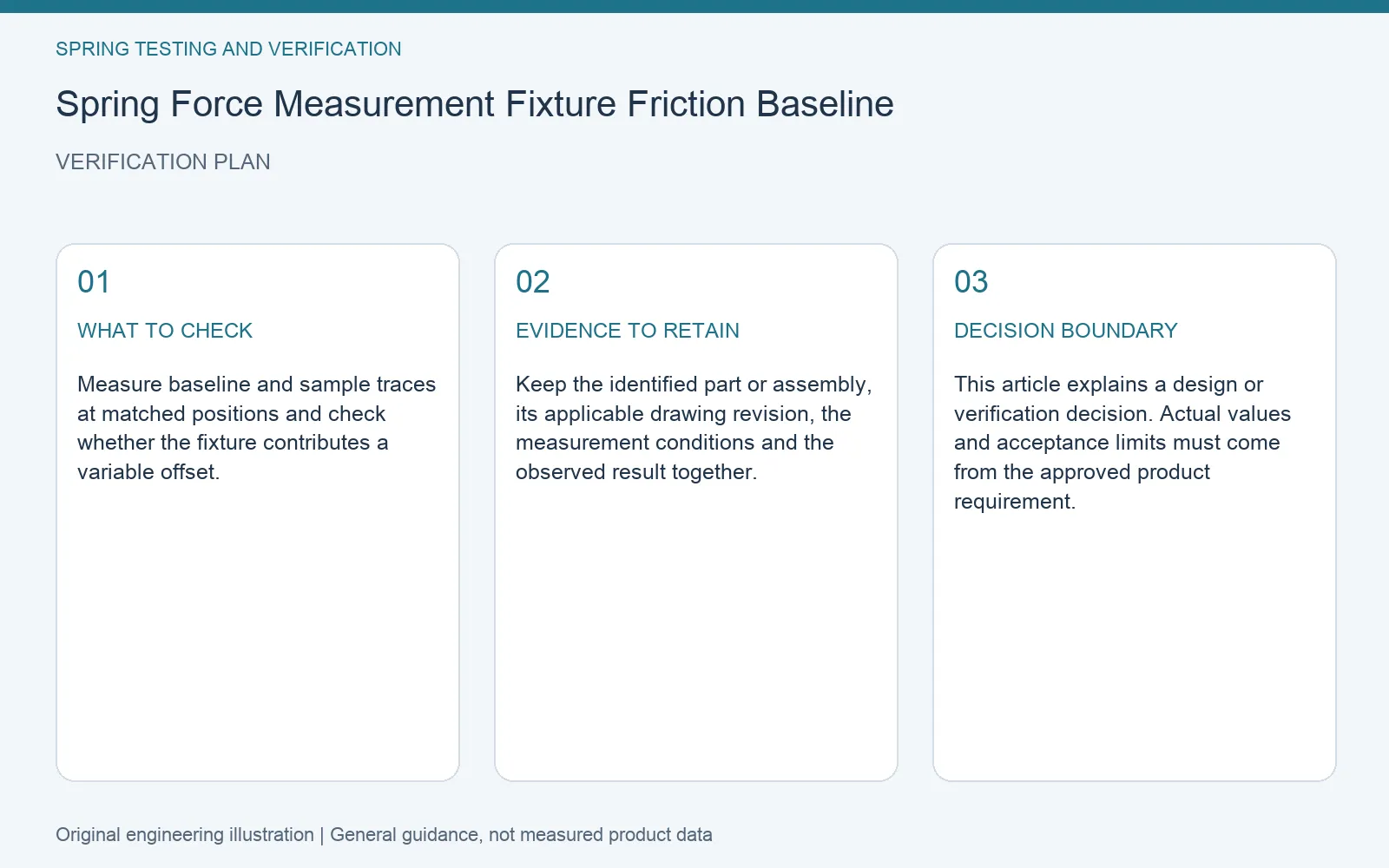

A practical verification method
Measure baseline and sample traces at matched positions and check whether the fixture contributes a variable offset.
| Item | What to record | Purpose |
|---|---|---|
| Reference configuration | Part or assembly identity and drawing revision | Make comparisons traceable |
| Test conditions | Relevant position, direction and operating condition | Compare the same characteristic |
| Decision evidence | Measure baseline and sample traces at matched positions and check whether the fixture contributes a variable offset. | Resolve the specific question before approval |
Use the result in an engineering request
Describe the observed condition and the required function separately. Include the relevant drawing revision and your results from the check above. If an acceptance limit has not been established, identify it as an open design input rather than treating a successful trial as approval.
